Ingest Farallon Institute Bird & Mammal Census

Published

2026-09-04

1 Overview

Source: transect (effort), observation (count), and species tables come from NOAA ERDDAP (CAC_FI_SBAS_tr / CAC_FI_SBAS_obs / CAC_FI_SBAS_sp, oceanview.pfeg.noaa.gov) as of 2026-08-25 — back online per Ben, superseding the CCE-LTER DataZoo 255 local export (whales-seabirds-turtles/bird-mammal-census/) for these three tables. They are downloaded first into data/cache/ and archived to GCS, so a run reads a file it can hash and diff rather than a live query (see Read Source Data). Behavior lookup CONFIRMED not on ERDDAP (checked directly against oceanview, 404) and stays DataZoo/local-sourced. Bird & mammal observations along CalCOFI/NMFS/CPR cruise transects, 1987–2022.

What the switch changes in the rows (measured 2026-09-03 against the DataZoo export): the two sources are identical for 1987–2018 (60,715 shared transects, every observation row equal); ERDDAP adds 2019, 2020 and 2022 (3,216 transects, 6,020 observation rows); ERDDAP has no observations at all for 2021 although it carries 956 transects for the two 2021 cruises, and DataZoo published 625 observations for CAC2021_7 — filed as Q11 and taken as served, not patched from DataZoo.

Provider: calcofi (tentative — curated via CCE-LTER; see questions)

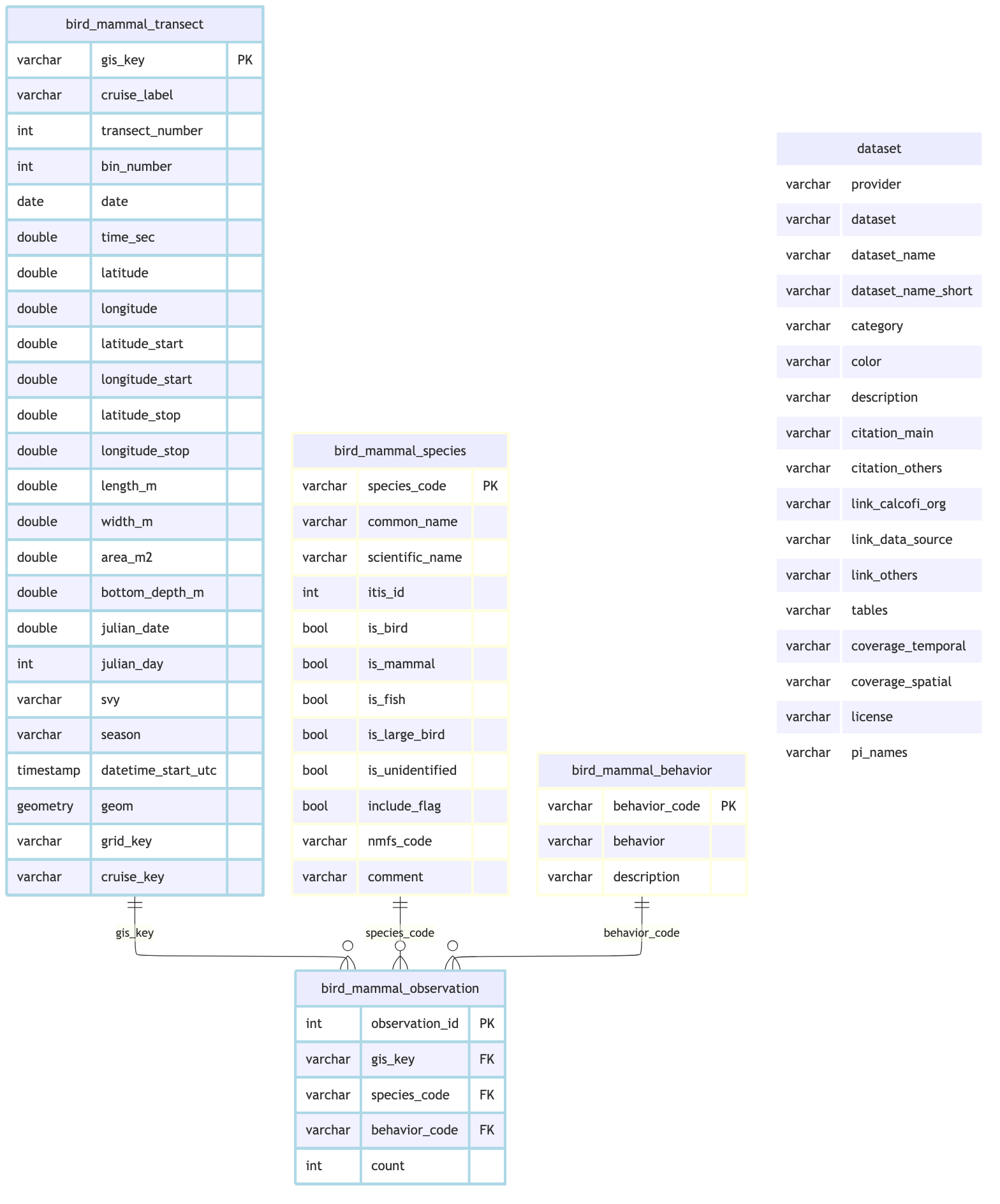

Tables: bird_mammal_transect (effort, ERDDAP) ⨝ bird_mammal_observation (counts, ERDDAP) on gis_key, plus bird_mammal_species (ERDDAP _sp, with the ITIS TSN and include / unidentified flags joined back from the committed DataZoo list — see Build Lookups) and bird_mammal_behavior (local) lookups.
Taxonomy: the species vocabulary is declared here with calcofi4db::append_dataset_taxon() and resolved by the package against WoRMS/ITIS (taxon plan D1–D3, calcofi4db ≥ 3.29.0); see Emit Core Tables.

Code

graph LR
  T[transects] --> TR[bird_mammal_transect<br/>effort + position]
  O[observations] --> OB[bird_mammal_observation<br/>counts]
  OB -.gis_key.-> TR
  OB -.species_code.-> SP[bird_mammal_species]
  OB -.behavior_code.-> BH[bird_mammal_behavior]

graph LR
  T[transects] --> TR[bird_mammal_transect<br/>effort + position]
  O[observations] --> OB[bird_mammal_observation<br/>counts]
  OB -.gis_key.-> TR
  OB -.species_code.-> SP[bird_mammal_species]
  OB -.behavior_code.-> BH[bird_mammal_behavior]

2 Setup

Code

devtools::load_all(here::here("../calcofi4db"))
devtools::load_all(here::here("../calcofi4r"))
librarian::shelf(
  CalCOFI/calcofi4db, CalCOFI/calcofi4r,
  DBI, dplyr, DT, fs, glue, here, janitor, jsonlite, knitr,
  lubridate, purrr, readr, sf, stringr, tibble, tidyr, units, quiet = T)
options(readr.show_col_types = F)
options(DT.options = list(scrollX = TRUE))
source(here("libs/ingest.R"))

cc           <- read_calcofi_meta(here("ingest_farallon_bird-mammal.qmd"))
provider     <- cc$provider
dataset      <- cc$dataset
tables_owned <- cc$tables_owned
dir_label    <- glue("{provider}_{dataset}")
dir_parquet  <- here(glue("data/parquet/{dir_label}"))
dir_stage  <- cc_stage_path("parquet", dir_label, create = TRUE)
db_path      <- here(glue("data/wrangling/{dir_label}.duckdb"))
# the DataZoo 255 export on Drive: the behavior lookup is read from it, and its
# archived species list is what metadata/farallon/bird-mammal/
# species_itis_datazoo.csv was derived from -- transect, observation and species
# data come from ERDDAP, not this dir (see Read Source Data)
dir_src      <- path_expand(glue("{dir_data}/whales-seabirds-turtles/bird-mammal-census"))
# ERDDAP snapshots land here first (gitignored; archived to GCS below), so the
# notebook reads bytes it can name and hash rather than a live query: a re-run
# reuses them, `overwrite_all` (libs/ingest.R) refetches
dir_dl       <- here(glue("data/cache/{dir_label}")); dir_create(dir_dl)
# DataZoo's species list, committed once: the ITIS TSN per code plus the
# include / unidentified flags that ERDDAP's species table dropped (Build Lookups)
f_datazoo    <- here("metadata/farallon/bird-mammal/species_itis_datazoo.csv")
# GCS uploads (source archive + parquet mirror). Flip to FALSE to render without
# publishing -- a review render, or a machine without gcloud credentials.
publish_to_gcs <- TRUE

if (overwrite) {
  if (file_exists(db_path))                 file_delete(db_path)
  if (file_exists(paste0(db_path, ".wal"))) file_delete(paste0(db_path, ".wal"))
}
dir_create(dirname(db_path))
con <- get_duckdb_con(db_path)
load_duckdb_extension(con, "spatial")

3 Read Source Data

Code

# transects + observations + species: NOAA ERDDAP, not the DataZoo local export
# (Ben, 2026-08-25 — "the recently ascribed source dataset ... appears to be back
# online"). oceanview is the host already used by dataset_meta.link_data_source
# and by the ichthyo tow links; coastwatch serves the same datasets but was
# unreachable outright when last checked (2026-08-24). Column names/order/
# units-row shape confirmed 2026-09-02 against real rows pulled from oceanview.
#
# Download-first: each table is fetched into dir_dl once (skipped while the file
# exists; overwrite_all refetches), archived to GCS beside the DataZoo export,
# and read from disk. A live read_csv(url) leaves nothing to diff when the
# provider changes something upstream -- and they do (Q11).
erddap_host <- "https://oceanview.pfeg.noaa.gov/erddap/tabledap"
erddap_ids  <- c(tr = "CAC_FI_SBAS_tr", obs = "CAC_FI_SBAS_obs", sp = "CAC_FI_SBAS_sp")
erddap_urls <- setNames(as.character(glue("{erddap_host}/{erddap_ids}.csv")), names(erddap_ids))
erddap_csvs <- setNames(file.path(dir_dl, glue("{erddap_ids}.csv")), names(erddap_ids))
downloaded  <- character()
for (k in names(erddap_ids)) {
  if (overwrite_all || !file_exists(erddap_csvs[[k]])) {
    download.file(erddap_urls[[k]], erddap_csvs[[k]], quiet = TRUE)
    downloaded <- c(downloaded, k)
  }
}
# when the bytes came down: the cached file's mtime IS the download time, for a
# fetch in this run (`download`) as much as for one a previous run made
# (`file_mtime`); the recorded source is the URL, not a path on this machine.
# build_metadata_json(sources = ) writes it to metadata.json as sources[] and
# the release takes the newest stamp as this dataset's measured source_accessed.
src_stamp <- stamp_source_access(files = c(unname(erddap_csvs), file.path(
  dir_src, "CalCOFI_bird-mammal-census_behaviorcodes.csv"))) |>
  mutate(source = c(unname(erddap_urls),
                    "gs://calcofi-files-public/archive/farallon/bird-mammal/CalCOFI_bird-mammal-census_behaviorcodes.csv"),
         method = c(ifelse(names(erddap_ids) %in% downloaded, "download", "file_mtime"), "file_mtime"))
cat(glue("ERDDAP: {length(downloaded)} table(s) downloaded this run, ",
         "{length(erddap_ids) - length(downloaded)} reused from {dir_dl}"), "\n")

ERDDAP: 3 table(s) downloaded this run, 0 reused from /Users/bbest/Github/CalCOFI/workflows/data/cache/farallon_bird-mammal

Code

read_erddap <- function(f) {
  # ERDDAP's .csv puts a units row directly under the header; drop it. Reading
  # by name (not position) so a column reorder on the provider's end doesn't
  # silently misalign fields the way a positional/.csv0 read would.
  read_csv(f, col_types = cols(.default = "c")) |> slice(-1)
}
d_tr <- read_erddap(erddap_csvs[["tr"]])   # time, latitude, longitude, gis_key,
                                            # transect, bin, date, datedate,
                                            # numeric_time, length_km, width_km,
                                            # area_km2, year, month, cruise,
                                            # season, core
d_ob <- read_erddap(erddap_csvs[["obs"]])  # idnum, gis_key, behavior, species, count

# species lookup: CAC_FI_SBAS_sp -- species / type / common_name /
# scientific_name, and no ids. Replaces the local allspecieslist file as the
# vocabulary; what that file carried and this one does not (the ITIS TSN, the
# include / unidentified flags) is joined back in Build Lookups. The source has
# a couple of junk rows after the units row (one fully blank, one with only
# `type` populated as "b") -- filtered on `species` rather than assumed to be
# exactly two, in case the count varies on a re-pull.
d_sp <- read_erddap(erddap_csvs[["sp"]]) |> filter(!is.na(species) & species != "")

# behavior lookup: CONFIRMED not on ERDDAP (checked directly against oceanview
# 2026-09-02: CAC_FI_SBAS_beh -> 404 "Currently unknown datasetID"). Stays
# DataZoo/local-sourced -- a real, permanent gap, asked as Q10 (d).
stopifnot("source dir not found" = dir_exists(dir_src))
if (publish_to_gcs) {
  sync_to_gcs(local_dir = dir_src, gcs_prefix = glue("archive/{provider}/{dataset}"),
              bucket = "calcofi-files-public", exclude = c(".DS_Store", "*.tmp", "*.gdoc"))
  sync_to_gcs(local_dir = dir_dl, gcs_prefix = glue("archive/{provider}/{dataset}/erddap"),
              bucket = "calcofi-files-public")
} else {
  cat("publish_to_gcs is FALSE -- sources NOT archived to gs://calcofi-files-public\n")
}

# A tibble: 3 × 4
  file    action    size reason
  <chr>   <chr>    <dbl> <chr>
1 <rsync> uploaded    NA parallel rsync
2 <rsync> uploaded    NA parallel rsync
3 <rsync> uploaded    NA parallel rsync

Code

d_bh <- read_csv(file.path(dir_src, "CalCOFI_bird-mammal-census_behaviorcodes.csv"),
                 col_types = cols(.default = "c")) |> clean_names()
cat(glue("transects {nrow(d_tr)} (ERDDAP), observations {nrow(d_ob)} (ERDDAP), ",
         "species {nrow(d_sp)} (ERDDAP), behaviors {nrow(d_bh)} (local)"), "\n")

transects 64421 (ERDDAP), observations 87813 (ERDDAP), species 242 (ERDDAP), behaviors 4 (local)

Code

cat("transect column names:", paste(names(d_tr), collapse=", "), "\n")

transect column names: time, latitude, longitude, gis_key, transect, bin, date, datedate, numeric_time, length_km, width_km, area_km2, year, month, cruise, season, core

4 Build Lookups (species, behavior)

Code

# DataZoo 255's species list carried what ERDDAP's CAC_FI_SBAS_sp does not: an
# ITIS TSN per code and the include / unidentified flags. It is committed ONCE
# as metadata/farallon/bird-mammal/species_itis_datazoo.csv, derived from the
# archived CalCOFI_bird-mammal-census_allspecieslist.csv (the file the wrangling
# database's bird_mammal_species was built from until 2026-08-25; also at
# gs://calcofi-files-public/archive/farallon/bird-mammal/). Regenerated here only
# if the file is missing, so the derivation stays reproducible without the
# Drive archive being needed for a run. The TSNs are what the taxon crosswalk
# keys on (they resolve exactly, where a name may not); the include flag is the
# provider's "this is a taxon worth analysing" (land birds, fish, sharks and the
# coarsest "unidentified bird / mammal / fish" classes are not).
if (!file_exists(f_datazoo)) {
  read_csv(file.path(dir_src, "CalCOFI_bird-mammal-census_allspecieslist.csv"),
           col_types = cols(.default = "c")) |>
    transmute(
      species_code    = Species,
      common_name     = `Common Name`,
      scientific_name = `Latin Name`,
      itis_id         = suppressWarnings(as.integer(ITIS)),
      is_bird         = Bird == "1", is_mammal = Mammal == "1", is_fish = Fish == "1",
      is_unidentified = Unidentified == "1",
      include_flag    = Include == "1") |>
    arrange(species_code) |>
    write_csv(f_datazoo, na = "")
}
d_datazoo <- read_csv(f_datazoo, col_types = cols(
  itis_id = "i", is_bird = "l", is_mammal = "l", is_fish = "l",
  is_unidentified = "l", include_flag = "l", .default = "c"))
stopifnot("species_code must be unique in the DataZoo list" = !anyDuplicated(d_datazoo$species_code))
cat(glue("DataZoo species list: {nrow(d_datazoo)} codes, ",
         "{sum(!is.na(d_datazoo$itis_id))} with a TSN, ",
         "{sum(d_datazoo$include_flag)} include_flag, ",
         "{sum(d_datazoo$is_unidentified & d_datazoo$include_flag)} of those unidentified"), "\n")

DataZoo species list: 200 codes, 159 with a TSN, 156 include_flag, 28 of those unidentified

Code

# ERDDAP's CAC_FI_SBAS_sp is thinner than DataZoo's allspecieslist: no itis_id,
# is_unidentified or include_flag (nor is_large_bird / nmfs_code / comment).
# `type` (bird / fish / mammal / turtle) replaces the per-species booleans. The
# three columns the taxon crosswalk needs are joined back from the committed
# DataZoo list (species-datazoo above) -- NA for a code DataZoo never listed.
#
# SBIG appears twice in the source: "Mew Gull" with no scientific name, and
# "Short-billed gull" Larus brachyrhynchus -- one code, one taxon, two rows from
# the 2021 AOS Mew Gull / Short-billed Gull split. Keep the row that carries the
# name (append_dataset_taxon() refuses a duplicate code, by design). The old
# code MEGU is the mirror image -- in the observations, absent from this table --
# and is handled where the vocabulary is staged (Emit Core Tables, Q10).
n_sbig <- sum(d_sp$species == "SBIG")
d_sp   <- d_sp |> filter(!(species == "SBIG" & is.na(scientific_name)))
stopifnot("species_code must be unique after the SBIG dedup" = !anyDuplicated(d_sp$species))
d_species <- d_sp |>
  transmute(
    species_code = species, common_name, scientific_name, type,
    is_bird = type == "bird", is_mammal = type == "mammal",
    is_fish = type == "fish", is_turtle = type == "turtle") |>
  left_join(d_datazoo |> select(species_code, itis_id, is_unidentified, include_flag,
                                 scientific_name_datazoo = scientific_name),
            by = "species_code")
dbWriteTable(con, "bird_mammal_species", d_species, overwrite = TRUE)

d_behavior <- d_bh |> transmute(behavior_code = id, behavior, description)
dbWriteTable(con, "bird_mammal_behavior", d_behavior, overwrite = TRUE)
cat(glue("species {nrow(d_species)} (SBIG {n_sbig} rows -> 1; ",
         "{sum(!is.na(d_species$itis_id))} with a DataZoo TSN, ",
         "{sum(is.na(d_species$include_flag))} not in DataZoo's list), ",
         "behaviors {nrow(d_behavior)}"), "\n")

species 241 (SBIG 2 rows -> 1; 156 with a DataZoo TSN, 44 not in DataZoo's list), behaviors 4

5 Build Transect (effort) Table

Code

# ERDDAP's CAC_FI_SBAS_tr does NOT carry everything the DataZoo export did:
# no start/stop lat-lon (midpoint only), no bottom_depth_m, no julian_date/
# julian_day, no svy. Dropped here rather than backfilled with NA -- flag as a
# new provider question if any of these turn out to be needed downstream.
# lengths/area arrive in km/km2 (converted to m/m2 to match the prior schema);
# `core` (survey core-area flag) is new from ERDDAP and has no prior home, kept
# as core_flag in case it's useful, safe to drop if not.
d_transect <- d_tr |>
  transmute(
    gis_key,
    cruise_label    = cruise,
    transect_number = suppressWarnings(as.integer(transect)),
    bin_number      = suppressWarnings(as.integer(bin)),
    latitude        = suppressWarnings(as.numeric(latitude)),
    longitude       = suppressWarnings(as.numeric(longitude)),
    length_m        = suppressWarnings(as.numeric(length_km)) * 1000,
    width_m         = suppressWarnings(as.numeric(width_km)) * 1000,
    area_m2         = suppressWarnings(as.numeric(area_km2)) * 1e6,
    core_flag       = suppressWarnings(as.integer(core)),
    season,
    # ERDDAP's `time` is a real UTC timestamp straight from the provider -- this
    # RESOLVES Q01 (source tz previously unconfirmed under the old date +
    # time_sec reconstruction). See the cruise-match step below, now matched on
    # this column instead of date-only for the same reason.
    datetime_start_utc = suppressWarnings(ymd_hms(time, tz = "UTC")),
    # NOT parsed from `datedate` (confirmed via real sample rows to be ambiguous
    # US-style "5/5/1987 0:00" text -- as.Date() on that string silently returns
    # NA for every row under R's default ISO format). Derived from the
    # already-parsed UTC timestamp instead, which is unambiguous.
    date = as.Date(datetime_start_utc))

dbWriteTable(con, "bird_mammal_transect", d_transect, overwrite = TRUE)
cat(glue("bird_mammal_transect: {nrow(d_transect)} rows"), "\n")

bird_mammal_transect: 64421 rows

6 Build Observation (counts) Table

Code

# idnum from ERDDAP is a real, stable source id -- used directly as
# observation_id instead of a locally generated row_number() (the old
# behavior, from when the source had no id column of its own).
#
# species_code: every code the observations use is either staged in
# dataset_taxon or listed as excluded, and check_dataset_taxon() enforces that
# (Emit Core Tables). behavior_code still matches against the local
# bird_mammal_behavior lookup exactly as before this rewrite -- unchanged, so
# not a new risk from this edit.
d_observation <- d_ob |>
  transmute(gis_key, species_code = species, behavior_code = behavior,
            count = suppressWarnings(as.integer(count)),
            observation_id = idnum)
dbWriteTable(con, "bird_mammal_observation", d_observation, overwrite = TRUE)
cat(glue("bird_mammal_observation: {nrow(d_observation)} rows"), "\n")

bird_mammal_observation: 87813 rows

7 Resolve cruise_key + Spatial

The source records a survey label (CAC1987_05), not a cruise, and carries no ship column — so cruise_key has to be recovered from where the observers actually were. Parsing year-month out of the label is not enough: it is ambiguous whenever several ships sailed in one month (1998-10 had four), and it is wrong outright for a survey straddling a month boundary (CAC2014_01 ran 2014-01-29 → 02-04 and belongs to 2014-02-3322). See Q02.

The observers ride a CalCOFI ship, so each transect sits on that day’s station track. match_cruise_by_track() matches every transect to the nearest station occupied the same day, then takes the majority vote per survey label — one label is one cruise — and applies the winner to all of that label’s transects.

The reference track is the swfsc_ichthyo sample shard (already this notebook’s declared dependency). That choice matters for referential integrity: its cruise_keys are exactly the cruise reference table’s, so every key emitted here resolves. Tracks assembled from other shards include cruises absent from cruise (e.g. 2021-07-33P4), which would ship a dangling FK.

Code

# geometry + grid from the transect midpoint
load_prior_tables(con, parquet_dir = cc_stage_path("parquet", "swfsc_ichthyo"),
                  tables = c("grid"), geom_tables = c("grid"), as_view = TRUE)

# A tibble: 1 × 3
  table  rows has_geom
  <chr> <dbl> <lgl>
1 grid    218 TRUE

Code

add_point_geom(con, "bird_mammal_transect", lon_col = "longitude", lat_col = "latitude")
assign_grid_key(con, "bird_mammal_transect") |> datatable(caption = "Grid assignment")

Code

# cruise track: one row per (cruise, day, station position); the match below
# is on datetime_start_utc now that ERDDAP's `time` is a UTC timestamp (Q01).
dbExecute(con, glue(
  "CREATE OR REPLACE VIEW cruise_track AS
   SELECT DISTINCT cruise_key, datetime, latitude, longitude
   FROM read_parquet('{cc_stage_path('parquet','swfsc_ichthyo','sample.parquet')}')
   WHERE cruise_key IS NOT NULL AND datetime IS NOT NULL"))

[1] 0

Code

# CHANGED: matched on datetime_start_utc, not date-only -- the old date-only
# choice existed BECAUSE the prior source's tz was unconfirmed (Q01). ERDDAP's
# `time` is a real UTC timestamp, so that reason no longer holds. This is a
# genuine behavior change (day-boundary transects can now land differently) --
# verify the matched/total % below hasn't dropped before trusting it; revert
# datetime_col back to "date" if it has.
cruise_match <- match_cruise_by_track(
  con, "bird_mammal_transect", "cruise_track",
  datetime_col     = "datetime_start_utc", lon_col = "longitude", lat_col = "latitude",
  ref_datetime_col = "datetime",
  group_col        = "cruise_label")

cat(glue("cruise_key resolved on {cruise_match$matched}/{cruise_match$total} ",
         "transects ({cruise_match$pct}%)"), "\n")

cruise_key resolved on 63193/64421 transects (98.1%)

Code

# surveys with no cruise sit at the top: they are the ones to eyeball, not the
# 100%-unanimous majority
cruise_match$groups |>
  datatable(caption = "Survey label -> cruise_key (vote share; NULL = unresolved)",
            rownames = FALSE, filter = "top") |>
  formatPercentage("share", 1)

Code

grp <- cruise_match$groups
n_unresolved <- sum(is.na(grp$cruise_key))

# a survey is one cruise on one ship, so two labels claiming the same cruise
# would mean the vote collapsed two distinct surveys together
dupe <- grp$cruise_key[!is.na(grp$cruise_key)]
dupe <- dupe[duplicated(dupe)]

stopifnot(
  "cruise_key must resolve on >95% of transects" =
    cruise_match$pct > 95,
  "every survey label must resolve to a distinct cruise_key" =
    length(dupe) == 0,
  "resolved cruise_key must exist in the cruise reference (no dangling FK)" =
    dbGetQuery(con, "
      SELECT COUNT(*) FROM bird_mammal_transect t
      WHERE t.cruise_key IS NOT NULL AND t.cruise_key NOT IN (
        SELECT cruise_key FROM cruise_track)")[[1]] == 0)

cat(glue(
  "{nrow(grp) - n_unresolved}/{nrow(grp)} survey labels resolved; ",
  "{n_unresolved} left NULL: ",
  "{paste(grp$cruise_label[is.na(grp$cruise_key)], collapse=', ')}"), "\n")

123/126 survey labels resolved; 3 left NULL: CAC2021_7, CAC2022_8, Fronts_0711

The unresolved labels are correct as NULL, not gaps to be filled:

Fronts_0711 (2011-06-21 → 07-16) is a CCE-LTER Fronts process cruise; no CalCOFI cruise sailed in that window (2011-04 ended 04-27, the next began 07-27), so there is no CalCOFI cruise to point at.
CAC2021_7 (2021-07-19 → 08-02) did ride a CalCOFI cruise — 2021-07-33P4, an exact date-range match — but that cruise is missing from the cruise reference table, which is built from the ichthyo source alone. Assigning it would ship a dangling FK. It resolves for free once cruise covers every cruise the other datasets reference (workflows#75 — 296 of 987 referenced keys are missing, so that gap is worth closing on its own merits rather than for this one survey).
CAC2022_8 (2022-08-14 → 08-29, new with the ERDDAP source) is the same case: the ichthyo reference carries 2022-04-3322 and 2022-10-33UD but no August 2022 cruise, so its 523 transects (355 with observations) stay NULL until the reference does.

8 Load Dataset Metadata + Schema

Code

d_dataset <- ingest_yaml_to_dataset_df(read_ingest_yaml(here()))
dbWriteTable(con, "dataset", d_dataset, overwrite = TRUE)

bmc_rels <- list(
  primary_keys = list(
    bird_mammal_transect = "gis_key", bird_mammal_observation = "observation_id",
    bird_mammal_species = "species_code", bird_mammal_behavior = "behavior_code"),
  foreign_keys = list(
    list(table="bird_mammal_observation", column="gis_key",       ref_table="bird_mammal_transect", ref_column="gis_key"),
    list(table="bird_mammal_observation", column="species_code",  ref_table="bird_mammal_species",  ref_column="species_code"),
    list(table="bird_mammal_observation", column="behavior_code", ref_table="bird_mammal_behavior", ref_column="behavior_code")))
# the SOURCE shape, documenting the wrangling below. The tables this ingest
# actually publishes are the consolidated core (see "Emit Core Tables"), so
# relationships.json is written there, from core_relationships().
cc_erd(con, tables = c("bird_mammal_transect","bird_mammal_observation","bird_mammal_species","bird_mammal_behavior","dataset"),
       rels = bmc_rels,
       colors = list(lightblue = c("bird_mammal_transect","bird_mammal_observation"),
                     lightyellow = c("bird_mammal_species","bird_mammal_behavior"), white = "dataset"))

9 Validate + Preview

Code

results <- validate_for_release(con, checks = "all", strict = FALSE)
cat("Validation:", ifelse(results$passed, "PASSED", "FAILED"), "\n")

Validation: FAILED

Code

# orphan check: observations whose gis_key is not in transects
n_orphan <- dbGetQuery(con, "SELECT COUNT(*) FROM bird_mammal_observation o
  LEFT JOIN bird_mammal_transect t USING(gis_key) WHERE t.gis_key IS NULL")[[1]]
cat(glue("observation gis_key orphans (no transect): {n_orphan}"), "\n")

observation gis_key orphans (no transect): 0

Code

cols <- dbGetQuery(con, "SELECT column_name FROM information_schema.columns
  WHERE table_name='bird_mammal_transect' AND data_type NOT LIKE 'GEOMETRY%'")$column_name
dbGetQuery(con, glue("SELECT {paste(cols, collapse=', ')} FROM bird_mammal_transect LIMIT 100")) |>
  datatable(caption = "bird_mammal_transect — first 100", rownames = FALSE, filter = "top")

10 Questions for Data Providers

Code

# one validated read + render for every ingest: the vocabulary and the column
# order live in calcofi4db, not in 16 hand-written factor() calls
questions_datatable(
  here(cc$questions_file),
  caption = "Questions for the Farallon bird/mammal data providers (ranked)")

11 Emit Core Tables

Project this dataset into the shared consolidated core model (design_env-bio-consolidation.md). These core tables are this ingest’s output: release_database.qmd concatenates the per-dataset shards rather than re-deriving the core from per-dataset tables, so there is exactly one projection to keep correct.

The seabird/mammal source records one row per (transect, species, behavior). The obs headline is one row per (transect, species) with count summed across behaviors — otherwise the same birds are counted once per behavior code — and the behavior breakdown becomes obs_attribute rows carrying the behavior label.

11.1 Taxon vocabulary

The vocabulary is declared here and resolved by calcofi4db (taxon plan D1–D3, ≥ 3.29.0): append_dataset_taxon() stages one dataset_taxon row per code with taxon_key empty; ensure_taxon_xref() / ensure_taxon_lineage() resolve ids and classification against WoRMS + ITIS (cached under metadata/); resolve_dataset_taxon() mints the key from the class — itis:<tsn> exactly when the class is Aves and an accepted TSN resolves, else worms:<aphia> — never from a source flag. There is no farallon arm in the package any more; what the arm used to hard-code is now registry rows, and check_dataset_taxon() halts the render if a code the observations use is neither staged nor deliberately excluded.

What goes in, and what is left out (D3):

every code DataZoo’s include_flag admitted (the 156 codes released at v2026.08.25, minus CSLI and XAMU, which ERDDAP retired unreferenced — their observations carry CASL and GUMU/SCMU). Excluded codes keep a NULL taxon_key on their observations, as before.
codes ERDDAP added since DataZoo (44) have no include flag. Those the observations reference are decided one by one in the chunk; the rest are neither staged nor excluded until Farallon Institute flags them (Q10). SBIG is staged although unreferenced: it is the provider’s current code for the taxon MEGU records.
MEGU (71 observations, absent from CAC_FI_SBAS_sp) is added: the pre-2021 Mew Gull code, the same bird the source now lists as SBIG (Q10).
the “Unidentified X” classes resolve to Aves itis:174371 / Mammalia worms:1837 through metadata/taxon_override.csv rows — the fallback that used to be hard-coded in the package’s farallon arm.

Code

ds_key <- "farallon_bird-mammal"
# registries. measurement_taxon.csv has no farallon rows (this dataset's taxa are
# a vocabulary, not measurement-type names) but the resolvers take it for
# uniformity, filtered to THIS dataset; taxon_override.csv is read whole and
# every helper filters to ds_key itself (a row for a dataset absent from this
# connection is that dataset's business).
mt_taxon <- read_csv(here("metadata/measurement_taxon.csv"),
                     col_types = cols(worms_id = "i", itis_id = "i",
                                      bin_value = "d", .default = "c")) |>
  filter(dataset_key == ds_key)
tx_over  <- read_csv(here("metadata/taxon_override.csv"), show_col_types = FALSE)

obs_codes <- dbGetQuery(con, "SELECT DISTINCT species_code FROM bird_mammal_observation")$species_code

# ERDDAP-only codes the observations reference, decided one by one. DataZoo's
# include flag drew the line at seabirds, marine mammals and sea turtles; the
# same line is drawn here, and the list is asserted complete so a code that
# appears on a re-pull cannot slip through undecided.
erddap_only <- tibble::tribble(
  ~species_code, ~stage, ~why,
  "GUMU", TRUE,  "Guadalupe Murrelet - seabird (the post-2012 split of Xantus's Murrelet XAMU)",
  "SCMU", TRUE,  "Scripps's Murrelet - seabird (the other half of that split)",
  "CHSP", TRUE,  "Chapman's Storm-Petrel - seabird, a Leach's subspecies",
  "TOSP", TRUE,  "Townsend's Storm-Petrel - seabird",
  "NABO", TRUE,  "Nazca Booby - seabird",
  "MABO", TRUE,  "Masked Booby - seabird",
  "LOTU", TRUE,  "Loggerhead Turtle - sea turtle, as DataZoo included GRTU / RITU",
  "UNLP", TRUE,  "Unidentified Leach's Storm-Petrel - seabird class, like the other UN** classes",
  "UNMT", TRUE,  "Unidentified Murrelet - seabird class, like the other UN** classes",
  "CRAB", FALSE, "'Crab pot' - gear, not an organism",
  "FISH", FALSE, "unidentified fish - DataZoo excluded every fish (UNFI, BLSH, MOLA, ...)",
  "TUNA", FALSE, "'Tuna' - a fish, no rank stated",
  "VEVE", FALSE, "Velella velella - a hydrozoan; the census vocabulary is birds, mammals, turtles",
  "RAPT", FALSE, "unidentified raptor - land-bird class, as DataZoo excluded UNPA / UNHU",
  "WIWA", FALSE, "Wilson's Warbler - land bird, as DataZoo excluded YRWA / BRSP / EUST")
new_ref <- d_species$species_code[is.na(d_species$include_flag) & d_species$species_code %in% obs_codes]
stopifnot(
  "every ERDDAP-only code the observations reference must be decided in erddap_only" =
    setequal(new_ref, erddap_only$species_code))
staged_codes <- d_species |>
  filter(include_flag %in% TRUE |
         species_code %in% erddap_only$species_code[erddap_only$stage] |
         species_code == "SBIG") |>
  pull(species_code)
excluded_codes <- setdiff(obs_codes, c(staged_codes, "MEGU"))

# the declaration: code, the source's name and common name, and the id the
# source supplied (DataZoo's TSN, NA for an ERDDAP-only code) -- which
# append_dataset_taxon() stores as ds_source_json, the audit value below
d_vocab <- d_species |>
  filter(species_code %in% staged_codes) |>
  transmute(ds_taxa_code = species_code, ds_scientific_name = scientific_name,
            ds_common_name = common_name, itis_id) |>
  bind_rows(tibble(
    ds_taxa_code = "MEGU", ds_scientific_name = "Larus brachyrhynchus",
    ds_common_name = "Mew Gull",
    # DataZoo's TSN (176832, Larus canus -- the pre-split name) rides along as
    # the source claim; the override row keys the code to the Short-billed
    # Gull like SBIG (Q10)
    itis_id = d_datazoo$itis_id[d_datazoo$species_code == "MEGU"]))
n_staged <- append_dataset_taxon(con, ds_key, d_vocab)

# cross-reference: resolve each taxon against BOTH authorities (cached in
# metadata/taxon_xref.csv, so a re-run costs no API calls) -- the TSN crosswalk
# where the source gave a TSN, the name where it gave nothing; fills the
# opposite authority's id as a cross-reference, replaces a deprecated id by its
# accepted form so the key is always an accepted id, and fetches the real
# taxonomic_status with the date it was checked. Must precede the lineage fetch.
ensure_taxon_xref(con, mt_taxon, tx_over,
                  cache_csv = here("metadata/taxon_xref.csv"))
# lineage: each taxon's classification (cached in metadata/taxon_lineage.csv),
# staged as the `taxon` hierarchy build_taxon_reference() reads and the source
# of the CLASS the key rule reads. Without it a taxon reaches the release with a
# key and a name and nothing else -- no rank, no parent, no classification.
ensure_taxon_lineage(con, mt_taxon, tx_over,
                     cache_csv = here("metadata/taxon_lineage.csv"))
n_taxon    <- build_taxon_reference(con, mt_taxon, tx_over)
n_ds_taxon <- resolve_dataset_taxon(con, mt_taxon, tx_over)
n_tx_group <- build_taxon_group(con, read_taxon_group_rules(here("metadata/taxon_group.csv")))

# the ingest asserts its own crosswalk (D6): every code the observations use is
# staged or deliberately excluded, every staged row keys an authority id, every
# Aves taxon keys itis:. Halts the render on any finding.
chk <- check_dataset_taxon(con, ds_key, codes = setdiff(obs_codes, excluded_codes))
cat(glue("vocabulary: {n_staged} codes staged; {length(excluded_codes)} of the ",
         "{length(obs_codes)} observed codes excluded; taxon {n_taxon}, ",
         "dataset_taxon {n_ds_taxon}, taxon_group {n_tx_group}"), "\n")

vocabulary: 164 codes staged; 49 of the 210 observed codes excluded; taxon 266, dataset_taxon 164, taxon_group 130

Code

cat("excluded (their observations keep a NULL taxon_key):",
    paste(sort(excluded_codes), collapse = " "), "\n")

excluded (their observations keep a NULL taxon_key): AMCO BLOY BLSH BLSK BLTE BLTU BRSP BUFF CRAB DOWI EUST FISH GBHE GREG GRHE HASH HATU LBCU LBDO LESA LETU MAGO MAKO MALL MODO MOLA RAPT RBME RUDU SAND SHAR SNEG SNGO TUNA UMAM UNBI UNFI UNGO UNHU UNPA UNSB UNTU VEVE WESA WHIM WILL WIWA WWSC YRWA

The audit: what the source claimed (DataZoo’s TSN per code, kept in dataset_taxon.ds_source_json) against what the authority says (taxon.itis_id of the key the code resolved to). Every differing row must be one of three things, and the table says which: a deprecated TSN re-keyed onto its accepted form (taxon.notes records it), an override row (taxon_override.csv, with its note), or a taxon the source gave no TSN for. Never a silent pick.

Code

tx_over_ds <- tx_over |> filter(dataset_key == ds_key)
audit <- dbGetQuery(con, "
  SELECT d.ds_taxa_code, d.ds_scientific_name, d.ds_common_name,
         json_extract(d.ds_source_json, '$.itis_id')::INTEGER AS source_itis_id,
         t.itis_id, t.worms_id, t.scientific_name, d.taxon_key, t.notes
  FROM dataset_taxon d JOIN taxon t USING (taxon_key)
  WHERE d.dataset_key = ?
    AND json_extract(d.ds_source_json, '$.itis_id')::INTEGER IS DISTINCT FROM t.itis_id
  ORDER BY d.ds_taxa_code", params = list(ds_key)) |>
  mutate(
    override = tx_over_ds$note[match(ds_taxa_code, tx_over_ds$match_value)],
    explained_by = case_when(
      !is.na(override) ~ "override row (taxon_override.csv)",
      !is.na(source_itis_id) &
        str_detect(coalesce(notes, ""),
                   fixed(as.character(glue("itis:{source_itis_id} deprecated in ITIS")))) ~
        "deprecated TSN re-keyed onto its accepted form (taxon.notes)",
      is.na(source_itis_id) ~ "no source TSN; resolved by crosswalk or name (taxon.notes)",
      TRUE ~ "UNEXPLAINED"))
n_agree <- dbGetQuery(con, "
  SELECT COUNT(*) FROM dataset_taxon d JOIN taxon t USING (taxon_key)
  WHERE d.dataset_key = ? AND json_extract(d.ds_source_json, '$.itis_id')::INTEGER = t.itis_id",
  params = list(ds_key))[[1]]
stopifnot("every audit row must be explained" = !any(audit$explained_by == "UNEXPLAINED"))
cat(glue("audit: {n_agree} codes where the source TSN is the key's own TSN; ",
         "{nrow(audit)} differ -- ",
         "{paste(names(table(audit$explained_by)), table(audit$explained_by), sep = ': ', collapse = '; ')}"), "\n")

audit: 96 codes where the source TSN is the key's own TSN; 68 differ -- deprecated TSN re-keyed onto its accepted form (taxon.notes): 26; no source TSN; resolved by crosswalk or name (taxon.notes): 4; override row (taxon_override.csv): 38

Code

# the D3 rows, asserted rather than described
dt <- dbGetQuery(con, "SELECT ds_taxa_code, taxon_key FROM dataset_taxon WHERE dataset_key = ?",
                 params = list(ds_key))
key_of <- function(code) dt$taxon_key[dt$ds_taxa_code == code]
unid_birds   <- tx_over_ds$match_value[tx_over_ds$itis_id  %in% 174371L]
unid_mammals <- tx_over_ds$match_value[tx_over_ds$worms_id %in% 1837L]
stopifnot(
  "SBIG is staged exactly once"                      = sum(dt$ds_taxa_code == "SBIG") == 1,
  "MEGU keys the same taxon as SBIG (Q10)"           = identical(key_of("MEGU"), key_of("SBIG")),
  "MEGU / SBIG key an accepted ITIS TSN"             = str_starts(key_of("SBIG"), "itis:"),
  "every unidentified bird class keys Aves"          = all(dt$taxon_key[dt$ds_taxa_code %in% unid_birds]   == "itis:174371"),
  "every unidentified mammal class keys Mammalia"    = all(dt$taxon_key[dt$ds_taxa_code %in% unid_mammals] == "worms:1837"),
  "no excluded code has a dataset_taxon row"         = !any(excluded_codes %in% dt$ds_taxa_code))
cat(glue("D3: SBIG once; MEGU = SBIG = {key_of('SBIG')}; ",
         "{sum(dt$ds_taxa_code %in% unid_birds)} unidentified bird classes -> itis:174371, ",
         "{sum(dt$ds_taxa_code %in% unid_mammals)} unidentified mammal classes -> worms:1837"), "\n")

D3: SBIG once; MEGU = SBIG = itis:1192602; 21 unidentified bird classes -> itis:174371, 9 unidentified mammal classes -> worms:1837

Code

audit |>
  select(ds_taxa_code, ds_scientific_name, source_itis_id, itis_id, worms_id,
         scientific_name, taxon_key, explained_by, override) |>
  datatable(caption = "Source TSN (DataZoo) vs the authority TSN of the resolved key -- every row explained",
            rownames = FALSE, filter = "top")

11.2 Sample, obs, obs_attribute

Code

# This projection lives here, in the notebook that owns the dataset, not in a
# switch(dataset_key, ...) arm inside calcofi4db. The reusable SHAPE stays in the
# package (sample_arm_self), so this is a declaration.
append_sample(con, sample_arm_self(
  ds_key, "bird_mammal_transect", "gis_key", "transect"))

# obs — the occurrence headline: one row per (transect, SPECIES CODE), count
# SUMmed across behaviors.
#
# Grouping is on the source species_code, NOT on taxon_key alone: the excluded
# codes (excluded_codes, above) have no taxon, so grouping by taxon_key alone
# would sum every excluded species into a single NULL-taxon row per transect,
# silently merging distinct species. taxon_key is functionally determined by
# species_code (dataset_taxon is unique on ds_taxa_code within a dataset), so
# carrying both does not split the grain.
#
# The behavior breakdown is sub-occurrence detail and goes to obs_attribute — it
# must NOT ride on the headline's life_stage, or the same bird is counted once
# per behavior code.
append_obs(con, glue("
  SELECT 'bio', '{ds_key}', {ns_key(ds_key, 'transect', 'tr.gis_key')},
         tr.grid_key, tr.cruise_key, tr.latitude, tr.longitude,
         CAST(tr.datetime_start_utc AS TIMESTAMP), 0::DOUBLE, 0::DOUBLE,
         dt.taxon_key, NULL::VARCHAR, 'count', CAST(SUM(o.count) AS DOUBLE),
         NULL::VARCHAR, NULL::DOUBLE
  FROM bird_mammal_observation o JOIN bird_mammal_transect tr USING (gis_key)
  LEFT JOIN dataset_taxon dt ON dt.dataset_key = '{ds_key}'
                            AND dt.ds_taxa_code = CAST(o.species_code AS VARCHAR)
  GROUP BY tr.gis_key, tr.grid_key, tr.cruise_key, tr.latitude, tr.longitude,
           tr.datetime_start_utc, o.species_code, dt.taxon_key"))

# obs_attribute — the behavior breakdown, one row per source (transect, species,
# behavior): measurement_type = 'behavior', bin_label = the behavior description,
# bin_value NULL (behavior is categorical, not a numeric bin).
append_obs_attribute(con, glue("
  SELECT '{ds_key}', {ns_key(ds_key, 'transect', 'tr.gis_key')},
         dt.taxon_key, NULL::VARCHAR, 'behavior',
         NULL::DOUBLE, bb.description, CAST(o.count AS INTEGER), NULL::VARCHAR
  FROM bird_mammal_observation o JOIN bird_mammal_transect tr USING (gis_key)
  LEFT JOIN dataset_taxon dt ON dt.dataset_key = '{ds_key}'
                            AND dt.ds_taxa_code = CAST(o.species_code AS VARCHAR)
  LEFT JOIN bird_mammal_behavior bb ON bb.behavior_code = o.behavior_code"))

core <- list(
  sample        = dbGetQuery(con, "SELECT COUNT(*) FROM sample")[[1]],
  obs           = dbGetQuery(con, "SELECT COUNT(*) FROM obs")[[1]],
  obs_attribute = dbGetQuery(con, "SELECT COUNT(*) FROM obs_attribute")[[1]],
  taxon         = n_taxon,
  dataset_taxon = n_ds_taxon,
  taxon_group   = n_tx_group)
cat(glue(
  "core projection — sample={core$sample %||% 0} obs={core$obs %||% 0} ",
  "obs_attribute={core$obs_attribute %||% 0} ",
  "taxon={core$taxon %||% 0} dataset_taxon={core$dataset_taxon %||% 0} ",
  "taxon_group={core$taxon_group %||% 0}\n"))

core projection — sample=64421 obs=69661 obs_attribute=87813 taxon=266 dataset_taxon=164 taxon_group=130

Code

# the headline must collapse behaviors, and the attribution must add back up
n_obs <- core$obs
# one headline row per (transect, species_code) — NOT per behavior, and NOT
# collapsed by taxon_key (the excluded codes have none; grouping on taxon_key
# alone would merge every excluded species into one row per transect)
n_exp <- dbGetQuery(con, "
  SELECT COUNT(*) FROM (
    SELECT tr.gis_key, o.species_code
    FROM bird_mammal_observation o JOIN bird_mammal_transect tr USING (gis_key)
    GROUP BY 1, 2)")[[1]]
n_mismatch <- dbGetQuery(con, "
  WITH a AS (SELECT sample_key, taxon_key, SUM(count) s FROM obs_attribute
             WHERE measurement_type = 'behavior' GROUP BY 1, 2),
       o AS (SELECT sample_key, taxon_key, SUM(measurement_value) v FROM obs
             GROUP BY 1, 2)
  SELECT COUNT(*) FROM a JOIN o USING (sample_key, taxon_key) WHERE a.s <> o.v")[[1]]
# regression guard: grouping the headline on taxon_key alone (instead of
# species_code) merged every excluded species on a transect into ONE NULL-taxon
# row. If that ever comes back, transects with several excluded species collapse
# to a single row and this max drops to 1.
n_null_max <- dbGetQuery(con, "
  SELECT COALESCE(MAX(n), 0) FROM (
    SELECT sample_key, COUNT(*) n FROM obs WHERE taxon_key IS NULL GROUP BY 1)")[[1]]
n_null <- dbGetQuery(con, "SELECT COUNT(*) FROM obs WHERE taxon_key IS NULL")[[1]]
# the NULL-taxon rows must be exactly the excluded codes' rows: a staged code
# with no key would be a resolution failure check_dataset_taxon() should have
# caught, and an excluded code with a key would be a leak
excluded_sql <- paste0("'", excluded_codes, "'", collapse = ", ")
n_null_bad <- dbGetQuery(con, glue("
  SELECT COUNT(*) FROM bird_mammal_observation o
  LEFT JOIN dataset_taxon dt ON dt.dataset_key = '{ds_key}' AND dt.ds_taxa_code = o.species_code
  WHERE (dt.taxon_key IS NULL) <> (o.species_code IN ({excluded_sql}))"))[[1]]
stopifnot(
  "obs must be one row per (transect, species), not per behavior" = n_obs == n_exp,
  "obs_attribute behavior counts must sum to the obs headline"    = n_mismatch == 0,
  "a NULL taxon_key is an excluded code and nothing else"          = n_null_bad == 0,
  "excluded species must stay distinct, not merge into one NULL-taxon row per transect" =
    n_null_max > 1,
  "every obs.sample_key must resolve in sample" =
    dbGetQuery(con, "SELECT COUNT(*) FROM obs o LEFT JOIN sample s USING (sample_key)
                     WHERE s.sample_key IS NULL")[[1]] == 0,
  "every obs.taxon_key must RESOLVE in taxon (not merely be non-NULL)" =
    dbGetQuery(con, "SELECT COUNT(*) FROM obs o LEFT JOIN taxon t USING (taxon_key)
                     WHERE o.taxon_key IS NOT NULL AND t.taxon_key IS NULL")[[1]] == 0,
  "behavior is the only obs_attribute type here" =
    dbGetQuery(con, "SELECT COUNT(*) FROM obs_attribute
                     WHERE measurement_type <> 'behavior'")[[1]] == 0)
cat(glue("obs parity: {format(n_obs, big.mark = ',')} headline rows ",
         "({format(n_null, big.mark = ',')} without taxon_key = the ",
         "{length(excluded_codes)} excluded codes, up to {n_null_max} of them ",
         "on one transect); behavior attribution reconciles"), "\n")

obs parity: 69,661 headline rows (762 without taxon_key = the 49 excluded codes, up to 3 of them on one transect); behavior attribution reconciles

12 Write Outputs + Upload

Code

dir_create(dir_parquet)
tbls_out <- core_output_tables(con, extra = "dataset")
write_parquet_outputs(
  con = con, output_dir = dir_parquet, tables = tbls_out,
  sort_by = list(obs = c("grid_key", "measurement_type")),
  strip_provenance = FALSE)

# A tibble: 7 × 5
  table          rows file_size path                                 partitioned
  <chr>         <dbl>     <dbl> <chr>                                <lgl>
1 sample        64421    762171 sample.parquet                       FALSE
2 obs           69661   1555671 obs.parquet                          FALSE
3 obs_attribute 87813    211244 /Users/bbest/_big/calcofi/parquet/f… FALSE
4 taxon           266     13343 taxon.parquet                        FALSE
5 dataset_taxon   164      6249 /Users/bbest/_big/calcofi/parquet/f… FALSE
6 taxon_group     130      1423 /Users/bbest/_big/calcofi/parquet/f… FALSE
7 dataset          16     13447 /Users/bbest/_big/calcofi/parquet/f… FALSE

Code

build_relationships_json(
  rels = core_relationships(tbls_out), output_dir = dir_parquet,
  provider = provider, dataset = dataset)

[1] "/Users/bbest/Github/CalCOFI/workflows/data/parquet/farallon_bird-mammal/relationships.json"

Code

d_tbls_rd <- read_csv(here("metadata/farallon/bird-mammal/tbls_redefine.csv"))
d_flds_rd <- read_csv(here("metadata/farallon/bird-mammal/flds_redefine.csv"))
build_metadata_json(
  con = con, d_tbls_rd = d_tbls_rd, d_flds_rd = d_flds_rd,
  # shared core descriptions first, this dataset's overrides second
  metadata_derived_csv = c(
    here("metadata/core_dictionary.csv"),
    here("metadata/farallon/bird-mammal/metadata_derived.csv")),
  output_dir = dir_parquet, tables = tbls_out,
  set_comments = TRUE, provider = provider, dataset = dataset,
  workflow_url = cc$workflow_url, tables_owned = tables_owned,
  # when the ERDDAP tables were fetched (Read Source Data) -> metadata.json sources[]
  sources = src_stamp)

metadata.json documentation gaps (7 tables, 96 columns) — these render blank in cc_describe_table() / cc_db_catalog():
tables with no description_md: 1    dataset
columns with no description_md: 23    dataset.provider, dataset.dataset, dataset.dataset_name, dataset.dataset_name_short, dataset.category, dataset.color, dataset.description, dataset.citation_main, dataset.citation_others, dataset.link_calcofi_org, dataset.link_data_source, dataset.link_others (+11 more)
measurement columns with no units: 25    dataset.dataset_name_short, dataset.category, dataset.color, dataset.citation_main, dataset.citation_others, dataset.link_calcofi_org, dataset.link_data_source, dataset.link_others, dataset.tables, dataset.coverage_temporal, dataset.coverage_spatial, dataset.license (+13 more)
  backfill via metadata/{provider}/{dataset}/flds_redefine.csv, then re-run

[1] "/Users/bbest/Github/CalCOFI/workflows/data/parquet/farallon_bird-mammal/metadata.json"

Code

if (publish_to_gcs) {
  sync_to_gcs(local_dir = dir_stage, sidecar_dir = dir_parquet, gcs_prefix = glue("ingest/{dir_label}"), bucket = "calcofi-db")
} else {
  cat("publish_to_gcs is FALSE -- parquet kept local, NOT synced to gs://calcofi-db\n")
}

# A tibble: 10 × 4
   file    action    size reason
   <chr>   <chr>    <dbl> <chr>
 1 <rsync> uploaded    NA parallel rsync
 2 <rsync> uploaded    NA parallel rsync
 3 <rsync> uploaded    NA parallel rsync
 4 <rsync> uploaded    NA parallel rsync
 5 <rsync> uploaded    NA parallel rsync
 6 <rsync> uploaded    NA parallel rsync
 7 <rsync> uploaded    NA parallel rsync
 8 <rsync> uploaded    NA parallel rsync
 9 <rsync> uploaded    NA parallel rsync
10 <rsync> uploaded    NA parallel rsync

Code

close_duckdb(con)
cat(glue("Parquet outputs written to: {dir_parquet}"), "\n")

Parquet outputs written to: /Users/bbest/Github/CalCOFI/workflows/data/parquet/farallon_bird-mammal

--- title: "Ingest Farallon Institute Bird & Mammal Census" calcofi: target_name: ingest_farallon_bird_mammal workflow_type: ingest dependency: - ingest_swfsc_ichthyo output: data/parquet/farallon_bird-mammal/manifest.json provider: farallon dataset: bird-mammal workflow_url: https://calcofi.io/workflows/ingest_farallon_bird-mammal.html questions_file: metadata/farallon/bird-mammal/questions.csv dataset_meta: dataset_name: CalCOFI Bird & Mammal Census # display trio, read by the release `dataset` table and the # consumer apps (calcofi4db >= 3.15.0) — see NEWS for why these # left the apps' own hardcoded maps dataset_name_short: "Seabirds & Marine Mammals" category: "Seabirds & Marine Mammals" color: "#ff8787" description: > Bird and mammal observations along CalCOFI (and NMFS, CPR) cruise transects, 1987-present. Transect effort, counts, and species live from NOAA ERDDAP (CAC_FI_SBAS_tr / CAC_FI_SBAS_obs / CAC_FI_SBAS_sp); behavior lookups curated via CCE-LTER DataZoo 255 (PI Bill Sydeman). # no formal author/year/title citation is stated on the ERDDAP dataset or the # DataZoo catalog page — left empty; see # metadata/farallon/bird-mammal/questions.csv Q09 (proposed to Sydeman/Thompson) citation_main: "" link_calcofi_org: "" # the PFEG ERDDAP tables, not the Datazoo catalog page (which still answers # 200 but is on its way out; it survives as prose in `description` above). # link_data_source is the observations table (CAC_FI_SBAS_obs); the transect # and species tables are cited in link_others below. Per Ben (2026-08-25): # ERDDAP is back online, so the ingest's Read Source Data step now pulls # transects + observations + species live from oceanview.pfeg.noaa.gov # instead of the local DataZoo 255 export -- coastwatch serves the same # datasets but was unreachable when last checked (2026-08-24), and oceanview # is the host the ichthyo tow links already use. Behavior lookup CONFIRMED # not on ERDDAP (CAC_FI_SBAS_beh checked directly on oceanview 2026-09-02 — # 404) and stays DataZoo/local-sourced — see Read Source Data below and Q10. # The ERDDAP tables are downloaded first (data/cache/, archived to GCS) so a # run reads bytes it can name; the species vocabulary is staged through # calcofi4db::append_dataset_taxon() with DataZoo's TSNs riding along as the # audit value (Q10); the observations table carries no 2021 rows (Q11). # Once a release carries this, delete the matching override arm in # db-viz-station scripts/build_datasets.sql. link_data_source: "https://oceanview.pfeg.noaa.gov/erddap/tabledap/CAC_FI_SBAS_obs.html" link_others: - https://oceanview.pfeg.noaa.gov/erddap/tabledap/CAC_FI_SBAS_tr.html - https://oceanview.pfeg.noaa.gov/erddap/tabledap/CAC_FI_SBAS_sp.html - http://dx.doi.org/10.6073/pasta/4ee1bd702acb11786277192a41626800 # ERDDAP .das globals: creator_name "Sarah Ann Thompson", institution # "Farallon Institute, Scripps Institution of Oceanography"; `license` # points at a data-sharing-agreement PDF rather than stating terms inline. # source: https://oceanview.pfeg.noaa.gov/erddap/tabledap/CAC_FI_SBAS_obs.das, checked 2026-09-03 license: custom license_url: https://oceanview.pfeg.noaa.gov/CalCOFI/app/resources/docs/Data_Sharing_Agreement_FarallonInstitute.pdf pi_names: Bill Sydeman # this ingest publishes the consolidated core, not per-dataset tables: the # transect/observation/species/behavior source shape is wrangled in the # notebook and projected into sample / obs / obs_attribute + the taxa refs. tables_owned: - {table: sample, shared: true, note: "core event dimension (transect grain)"} - {table: obs, shared: true, note: "core occurrence headline (bio, per transect x species)"} - {table: obs_attribute, shared: true, note: "behavior breakdown per occurrence"} - {table: taxon, shared: true, note: "shared taxa reference (seabirds itis:, mammals worms:)"} - {table: dataset_taxon, shared: true, note: "species_code -> taxon_key crosswalk"} - {table: taxon_group, shared: true, note: "calcofi:seabirds / calcofi:marine_mammals"} erd: color: "#f0d2e8" editor_options: chunk_output_type: console --- ## Overview **Source**: transect (effort), observation (count), and species tables come from NOAA ERDDAP (`CAC_FI_SBAS_tr` / `CAC_FI_SBAS_obs` / `CAC_FI_SBAS_sp`, oceanview.pfeg.noaa.gov) as of 2026-08-25 — back online per Ben, superseding the CCE-LTER DataZoo 255 local export (`whales-seabirds-turtles/bird-mammal-census/`) for these three tables. They are **downloaded first** into `data/cache/` and archived to GCS, so a run reads a file it can hash and diff rather than a live query (see Read Source Data). Behavior lookup CONFIRMED not on ERDDAP (checked directly against oceanview, 404) and stays DataZoo/local-sourced. Bird & mammal observations along CalCOFI/NMFS/CPR cruise transects, 1987–2022. What the switch changes in the rows (measured 2026-09-03 against the DataZoo export): the two sources are **identical for 1987–2018** (60,715 shared transects, every observation row equal); ERDDAP **adds 2019, 2020 and 2022** (3,216 transects, 6,020 observation rows); ERDDAP **has no observations at all for 2021** although it carries 956 transects for the two 2021 cruises, and DataZoo published 625 observations for `CAC2021_7` — filed as Q11 and taken as served, not patched from DataZoo. - **Provider**: `calcofi` (tentative — curated via CCE-LTER; see questions) - **Tables**: `bird_mammal_transect` (effort, **ERDDAP**) ⨝ `bird_mammal_observation` (counts, **ERDDAP**) on `gis_key`, plus `bird_mammal_species` (**ERDDAP** `_sp`, with the ITIS TSN and include / unidentified flags joined back from the committed DataZoo list — see Build Lookups) and `bird_mammal_behavior` (**local**) lookups. - **Taxonomy**: the species vocabulary is *declared* here with `calcofi4db::append_dataset_taxon()` and *resolved* by the package against WoRMS/ITIS (taxon plan D1–D3, calcofi4db ≥ 3.29.0); see Emit Core Tables. ```{mermaid} graph LR T[transects] --> TR[bird_mammal_transect<br/>effort + position] O[observations] --> OB[bird_mammal_observation<br/>counts] OB -.gis_key.-> TR OB -.species_code.-> SP[bird_mammal_species] OB -.behavior_code.-> BH[bird_mammal_behavior] ``` ## Setup ```{r} #| label: setup #| message: false devtools::load_all(here::here("../calcofi4db")) devtools::load_all(here::here("../calcofi4r")) librarian::shelf( CalCOFI/calcofi4db, CalCOFI/calcofi4r, DBI, dplyr, DT, fs, glue, here, janitor, jsonlite, knitr, lubridate, purrr, readr, sf, stringr, tibble, tidyr, units, quiet = T) options(readr.show_col_types = F) options(DT.options = list(scrollX = TRUE)) source(here("libs/ingest.R")) cc <- read_calcofi_meta(here("ingest_farallon_bird-mammal.qmd")) provider <- cc$provider dataset <- cc$dataset tables_owned <- cc$tables_owned dir_label <- glue("{provider}_{dataset}") dir_parquet <- here(glue("data/parquet/{dir_label}")) dir_stage <- cc_stage_path("parquet", dir_label, create = TRUE) db_path <- here(glue("data/wrangling/{dir_label}.duckdb")) # the DataZoo 255 export on Drive: the behavior lookup is read from it, and its # archived species list is what metadata/farallon/bird-mammal/ # species_itis_datazoo.csv was derived from -- transect, observation and species # data come from ERDDAP, not this dir (see Read Source Data) dir_src <- path_expand(glue("{dir_data}/whales-seabirds-turtles/bird-mammal-census")) # ERDDAP snapshots land here first (gitignored; archived to GCS below), so the # notebook reads bytes it can name and hash rather than a live query: a re-run # reuses them, `overwrite_all` (libs/ingest.R) refetches dir_dl <- here(glue("data/cache/{dir_label}")); dir_create(dir_dl) # DataZoo's species list, committed once: the ITIS TSN per code plus the # include / unidentified flags that ERDDAP's species table dropped (Build Lookups) f_datazoo <- here("metadata/farallon/bird-mammal/species_itis_datazoo.csv") # GCS uploads (source archive + parquet mirror). Flip to FALSE to render without # publishing -- a review render, or a machine without gcloud credentials. publish_to_gcs <- TRUE if (overwrite) { if (file_exists(db_path)) file_delete(db_path) if (file_exists(paste0(db_path, ".wal"))) file_delete(paste0(db_path, ".wal")) } dir_create(dirname(db_path)) con <- get_duckdb_con(db_path) load_duckdb_extension(con, "spatial") ``` ## Read Source Data ```{r} #| label: read-source # transects + observations + species: NOAA ERDDAP, not the DataZoo local export # (Ben, 2026-08-25 — "the recently ascribed source dataset ... appears to be back # online"). oceanview is the host already used by dataset_meta.link_data_source # and by the ichthyo tow links; coastwatch serves the same datasets but was # unreachable outright when last checked (2026-08-24). Column names/order/ # units-row shape confirmed 2026-09-02 against real rows pulled from oceanview. # # Download-first: each table is fetched into dir_dl once (skipped while the file # exists; overwrite_all refetches), archived to GCS beside the DataZoo export, # and read from disk. A live read_csv(url) leaves nothing to diff when the # provider changes something upstream -- and they do (Q11). erddap_host <- "https://oceanview.pfeg.noaa.gov/erddap/tabledap" erddap_ids <- c(tr = "CAC_FI_SBAS_tr", obs = "CAC_FI_SBAS_obs", sp = "CAC_FI_SBAS_sp") erddap_urls <- setNames(as.character(glue("{erddap_host}/{erddap_ids}.csv")), names(erddap_ids)) erddap_csvs <- setNames(file.path(dir_dl, glue("{erddap_ids}.csv")), names(erddap_ids)) downloaded <- character() for (k in names(erddap_ids)) { if (overwrite_all || !file_exists(erddap_csvs[[k]])) { download.file(erddap_urls[[k]], erddap_csvs[[k]], quiet = TRUE) downloaded <- c(downloaded, k) } } # when the bytes came down: the cached file's mtime IS the download time, for a # fetch in this run (`download`) as much as for one a previous run made # (`file_mtime`); the recorded source is the URL, not a path on this machine. # build_metadata_json(sources = ) writes it to metadata.json as sources[] and # the release takes the newest stamp as this dataset's measured source_accessed. src_stamp <- stamp_source_access(files = c(unname(erddap_csvs), file.path( dir_src, "CalCOFI_bird-mammal-census_behaviorcodes.csv"))) |> mutate(source = c(unname(erddap_urls), "gs://calcofi-files-public/archive/farallon/bird-mammal/CalCOFI_bird-mammal-census_behaviorcodes.csv"), method = c(ifelse(names(erddap_ids) %in% downloaded, "download", "file_mtime"), "file_mtime")) cat(glue("ERDDAP: {length(downloaded)} table(s) downloaded this run, ", "{length(erddap_ids) - length(downloaded)} reused from {dir_dl}"), "\n") read_erddap <- function(f) { # ERDDAP's .csv puts a units row directly under the header; drop it. Reading # by name (not position) so a column reorder on the provider's end doesn't # silently misalign fields the way a positional/.csv0 read would. read_csv(f, col_types = cols(.default = "c")) |> slice(-1) } d_tr <- read_erddap(erddap_csvs[["tr"]]) # time, latitude, longitude, gis_key, # transect, bin, date, datedate, # numeric_time, length_km, width_km, # area_km2, year, month, cruise, # season, core d_ob <- read_erddap(erddap_csvs[["obs"]]) # idnum, gis_key, behavior, species, count # species lookup: CAC_FI_SBAS_sp -- species / type / common_name / # scientific_name, and no ids. Replaces the local allspecieslist file as the # vocabulary; what that file carried and this one does not (the ITIS TSN, the # include / unidentified flags) is joined back in Build Lookups. The source has # a couple of junk rows after the units row (one fully blank, one with only # `type` populated as "b") -- filtered on `species` rather than assumed to be # exactly two, in case the count varies on a re-pull. d_sp <- read_erddap(erddap_csvs[["sp"]]) |> filter(!is.na(species) & species != "") # behavior lookup: CONFIRMED not on ERDDAP (checked directly against oceanview # 2026-09-02: CAC_FI_SBAS_beh -> 404 "Currently unknown datasetID"). Stays # DataZoo/local-sourced -- a real, permanent gap, asked as Q10 (d). stopifnot("source dir not found" = dir_exists(dir_src)) if (publish_to_gcs) { sync_to_gcs(local_dir = dir_src, gcs_prefix = glue("archive/{provider}/{dataset}"), bucket = "calcofi-files-public", exclude = c(".DS_Store", "*.tmp", "*.gdoc")) sync_to_gcs(local_dir = dir_dl, gcs_prefix = glue("archive/{provider}/{dataset}/erddap"), bucket = "calcofi-files-public") } else { cat("publish_to_gcs is FALSE -- sources NOT archived to gs://calcofi-files-public\n") } d_bh <- read_csv(file.path(dir_src, "CalCOFI_bird-mammal-census_behaviorcodes.csv"), col_types = cols(.default = "c")) |> clean_names() cat(glue("transects {nrow(d_tr)} (ERDDAP), observations {nrow(d_ob)} (ERDDAP), ", "species {nrow(d_sp)} (ERDDAP), behaviors {nrow(d_bh)} (local)"), "\n") cat("transect column names:", paste(names(d_tr), collapse=", "), "\n") ``` ## Build Lookups (species, behavior) ```{r} #| label: species-datazoo # DataZoo 255's species list carried what ERDDAP's CAC_FI_SBAS_sp does not: an # ITIS TSN per code and the include / unidentified flags. It is committed ONCE # as metadata/farallon/bird-mammal/species_itis_datazoo.csv, derived from the # archived CalCOFI_bird-mammal-census_allspecieslist.csv (the file the wrangling # database's bird_mammal_species was built from until 2026-08-25; also at # gs://calcofi-files-public/archive/farallon/bird-mammal/). Regenerated here only # if the file is missing, so the derivation stays reproducible without the # Drive archive being needed for a run. The TSNs are what the taxon crosswalk # keys on (they resolve exactly, where a name may not); the include flag is the # provider's "this is a taxon worth analysing" (land birds, fish, sharks and the # coarsest "unidentified bird / mammal / fish" classes are not). if (!file_exists(f_datazoo)) { read_csv(file.path(dir_src, "CalCOFI_bird-mammal-census_allspecieslist.csv"), col_types = cols(.default = "c")) |> transmute( species_code = Species, common_name = `Common Name`, scientific_name = `Latin Name`, itis_id = suppressWarnings(as.integer(ITIS)), is_bird = Bird == "1", is_mammal = Mammal == "1", is_fish = Fish == "1", is_unidentified = Unidentified == "1", include_flag = Include == "1") |> arrange(species_code) |> write_csv(f_datazoo, na = "") } d_datazoo <- read_csv(f_datazoo, col_types = cols( itis_id = "i", is_bird = "l", is_mammal = "l", is_fish = "l", is_unidentified = "l", include_flag = "l", .default = "c")) stopifnot("species_code must be unique in the DataZoo list" = !anyDuplicated(d_datazoo$species_code)) cat(glue("DataZoo species list: {nrow(d_datazoo)} codes, ", "{sum(!is.na(d_datazoo$itis_id))} with a TSN, ", "{sum(d_datazoo$include_flag)} include_flag, ", "{sum(d_datazoo$is_unidentified & d_datazoo$include_flag)} of those unidentified"), "\n") ``` ```{r} #| label: lookups # ERDDAP's CAC_FI_SBAS_sp is thinner than DataZoo's allspecieslist: no itis_id, # is_unidentified or include_flag (nor is_large_bird / nmfs_code / comment). # `type` (bird / fish / mammal / turtle) replaces the per-species booleans. The # three columns the taxon crosswalk needs are joined back from the committed # DataZoo list (species-datazoo above) -- NA for a code DataZoo never listed. # # SBIG appears twice in the source: "Mew Gull" with no scientific name, and # "Short-billed gull" Larus brachyrhynchus -- one code, one taxon, two rows from # the 2021 AOS Mew Gull / Short-billed Gull split. Keep the row that carries the # name (append_dataset_taxon() refuses a duplicate code, by design). The old # code MEGU is the mirror image -- in the observations, absent from this table -- # and is handled where the vocabulary is staged (Emit Core Tables, Q10). n_sbig <- sum(d_sp$species == "SBIG") d_sp <- d_sp |> filter(!(species == "SBIG" & is.na(scientific_name))) stopifnot("species_code must be unique after the SBIG dedup" = !anyDuplicated(d_sp$species)) d_species <- d_sp |> transmute( species_code = species, common_name, scientific_name, type, is_bird = type == "bird", is_mammal = type == "mammal", is_fish = type == "fish", is_turtle = type == "turtle") |> left_join(d_datazoo |> select(species_code, itis_id, is_unidentified, include_flag, scientific_name_datazoo = scientific_name), by = "species_code") dbWriteTable(con, "bird_mammal_species", d_species, overwrite = TRUE) d_behavior <- d_bh |> transmute(behavior_code = id, behavior, description) dbWriteTable(con, "bird_mammal_behavior", d_behavior, overwrite = TRUE) cat(glue("species {nrow(d_species)} (SBIG {n_sbig} rows -> 1; ", "{sum(!is.na(d_species$itis_id))} with a DataZoo TSN, ", "{sum(is.na(d_species$include_flag))} not in DataZoo's list), ", "behaviors {nrow(d_behavior)}"), "\n") ``` ## Build Transect (effort) Table ```{r} #| label: transect # ERDDAP's CAC_FI_SBAS_tr does NOT carry everything the DataZoo export did: # no start/stop lat-lon (midpoint only), no bottom_depth_m, no julian_date/ # julian_day, no svy. Dropped here rather than backfilled with NA -- flag as a # new provider question if any of these turn out to be needed downstream. # lengths/area arrive in km/km2 (converted to m/m2 to match the prior schema); # `core` (survey core-area flag) is new from ERDDAP and has no prior home, kept # as core_flag in case it's useful, safe to drop if not. d_transect <- d_tr |> transmute( gis_key, cruise_label = cruise, transect_number = suppressWarnings(as.integer(transect)), bin_number = suppressWarnings(as.integer(bin)), latitude = suppressWarnings(as.numeric(latitude)), longitude = suppressWarnings(as.numeric(longitude)), length_m = suppressWarnings(as.numeric(length_km)) * 1000, width_m = suppressWarnings(as.numeric(width_km)) * 1000, area_m2 = suppressWarnings(as.numeric(area_km2)) * 1e6, core_flag = suppressWarnings(as.integer(core)), season, # ERDDAP's `time` is a real UTC timestamp straight from the provider -- this # RESOLVES Q01 (source tz previously unconfirmed under the old date + # time_sec reconstruction). See the cruise-match step below, now matched on # this column instead of date-only for the same reason. datetime_start_utc = suppressWarnings(ymd_hms(time, tz = "UTC")), # NOT parsed from `datedate` (confirmed via real sample rows to be ambiguous # US-style "5/5/1987 0:00" text -- as.Date() on that string silently returns # NA for every row under R's default ISO format). Derived from the # already-parsed UTC timestamp instead, which is unambiguous. date = as.Date(datetime_start_utc)) dbWriteTable(con, "bird_mammal_transect", d_transect, overwrite = TRUE) cat(glue("bird_mammal_transect: {nrow(d_transect)} rows"), "\n") ``` ## Build Observation (counts) Table ```{r} #| label: observation # idnum from ERDDAP is a real, stable source id -- used directly as # observation_id instead of a locally generated row_number() (the old # behavior, from when the source had no id column of its own). # # species_code: every code the observations use is either staged in # dataset_taxon or listed as excluded, and check_dataset_taxon() enforces that # (Emit Core Tables). behavior_code still matches against the local # bird_mammal_behavior lookup exactly as before this rewrite -- unchanged, so # not a new risk from this edit. d_observation <- d_ob |> transmute(gis_key, species_code = species, behavior_code = behavior, count = suppressWarnings(as.integer(count)), observation_id = idnum) dbWriteTable(con, "bird_mammal_observation", d_observation, overwrite = TRUE) cat(glue("bird_mammal_observation: {nrow(d_observation)} rows"), "\n") ``` ## Resolve cruise_key + Spatial The source records a **survey label** (`CAC1987_05`), not a cruise, and carries no ship column — so `cruise_key` has to be recovered from where the observers actually were. Parsing year-month out of the label is not enough: it is ambiguous whenever several ships sailed in one month (1998-10 had four), and it is wrong outright for a survey straddling a month boundary (`CAC2014_01` ran 2014-01-29 → 02-04 and belongs to `2014-02-3322`). See Q02. The observers ride a CalCOFI ship, so each transect sits on that day's station track. `match_cruise_by_track()` matches every transect to the nearest station occupied the same day, then takes the **majority vote per survey label** — one label is one cruise — and applies the winner to all of that label's transects. The reference track is the `swfsc_ichthyo` sample shard (already this notebook's declared dependency). That choice matters for referential integrity: its `cruise_key`s are exactly the `cruise` reference table's, so every key emitted here resolves. Tracks assembled from other shards include cruises absent from `cruise` (e.g. `2021-07-33P4`), which would ship a dangling FK. ```{r} #| label: spatial-cruise # geometry + grid from the transect midpoint load_prior_tables(con, parquet_dir = cc_stage_path("parquet", "swfsc_ichthyo"), tables = c("grid"), geom_tables = c("grid"), as_view = TRUE) add_point_geom(con, "bird_mammal_transect", lon_col = "longitude", lat_col = "latitude") assign_grid_key(con, "bird_mammal_transect") |> datatable(caption = "Grid assignment") # cruise track: one row per (cruise, day, station position); the match below # is on datetime_start_utc now that ERDDAP's `time` is a UTC timestamp (Q01). dbExecute(con, glue( "CREATE OR REPLACE VIEW cruise_track AS SELECT DISTINCT cruise_key, datetime, latitude, longitude FROM read_parquet('{cc_stage_path('parquet','swfsc_ichthyo','sample.parquet')}') WHERE cruise_key IS NOT NULL AND datetime IS NOT NULL")) # CHANGED: matched on datetime_start_utc, not date-only -- the old date-only # choice existed BECAUSE the prior source's tz was unconfirmed (Q01). ERDDAP's # `time` is a real UTC timestamp, so that reason no longer holds. This is a # genuine behavior change (day-boundary transects can now land differently) -- # verify the matched/total % below hasn't dropped before trusting it; revert # datetime_col back to "date" if it has. cruise_match <- match_cruise_by_track( con, "bird_mammal_transect", "cruise_track", datetime_col = "datetime_start_utc", lon_col = "longitude", lat_col = "latitude", ref_datetime_col = "datetime", group_col = "cruise_label") cat(glue("cruise_key resolved on {cruise_match$matched}/{cruise_match$total} ", "transects ({cruise_match$pct}%)"), "\n") ``` ```{r} #| label: cruise-match-review # surveys with no cruise sit at the top: they are the ones to eyeball, not the # 100%-unanimous majority cruise_match$groups |> datatable(caption = "Survey label -> cruise_key (vote share; NULL = unresolved)", rownames = FALSE, filter = "top") |> formatPercentage("share", 1) ``` ```{r} #| label: cruise-match-validate grp <- cruise_match$groups n_unresolved <- sum(is.na(grp$cruise_key)) # a survey is one cruise on one ship, so two labels claiming the same cruise # would mean the vote collapsed two distinct surveys together dupe <- grp$cruise_key[!is.na(grp$cruise_key)] dupe <- dupe[duplicated(dupe)] stopifnot( "cruise_key must resolve on >95% of transects" = cruise_match$pct > 95, "every survey label must resolve to a distinct cruise_key" = length(dupe) == 0, "resolved cruise_key must exist in the cruise reference (no dangling FK)" = dbGetQuery(con, " SELECT COUNT(*) FROM bird_mammal_transect t WHERE t.cruise_key IS NOT NULL AND t.cruise_key NOT IN ( SELECT cruise_key FROM cruise_track)")[[1]] == 0) cat(glue( "{nrow(grp) - n_unresolved}/{nrow(grp)} survey labels resolved; ", "{n_unresolved} left NULL: ", "{paste(grp$cruise_label[is.na(grp$cruise_key)], collapse=', ')}"), "\n") ``` The unresolved labels are correct as NULL, not gaps to be filled: - **`Fronts_0711`** (2011-06-21 → 07-16) is a CCE-LTER *Fronts* process cruise; no CalCOFI cruise sailed in that window (2011-04 ended 04-27, the next began 07-27), so there is no CalCOFI cruise to point at. - **`CAC2021_7`** (2021-07-19 → 08-02) *did* ride a CalCOFI cruise — `2021-07-33P4`, an exact date-range match — but that cruise is missing from the `cruise` reference table, which is built from the ichthyo source alone. Assigning it would ship a dangling FK. It resolves for free once `cruise` covers every cruise the other datasets reference (workflows#75 — 296 of 987 referenced keys are missing, so that gap is worth closing on its own merits rather than for this one survey). - **`CAC2022_8`** (2022-08-14 → 08-29, new with the ERDDAP source) is the same case: the ichthyo reference carries `2022-04-3322` and `2022-10-33UD` but no August 2022 cruise, so its 523 transects (355 with observations) stay NULL until the reference does. ## Load Dataset Metadata + Schema ```{r} #| label: meta-schema d_dataset <- ingest_yaml_to_dataset_df(read_ingest_yaml(here())) dbWriteTable(con, "dataset", d_dataset, overwrite = TRUE) bmc_rels <- list( primary_keys = list( bird_mammal_transect = "gis_key", bird_mammal_observation = "observation_id", bird_mammal_species = "species_code", bird_mammal_behavior = "behavior_code"), foreign_keys = list( list(table="bird_mammal_observation", column="gis_key", ref_table="bird_mammal_transect", ref_column="gis_key"), list(table="bird_mammal_observation", column="species_code", ref_table="bird_mammal_species", ref_column="species_code"), list(table="bird_mammal_observation", column="behavior_code", ref_table="bird_mammal_behavior", ref_column="behavior_code"))) # the SOURCE shape, documenting the wrangling below. The tables this ingest # actually publishes are the consolidated core (see "Emit Core Tables"), so # relationships.json is written there, from core_relationships(). cc_erd(con, tables = c("bird_mammal_transect","bird_mammal_observation","bird_mammal_species","bird_mammal_behavior","dataset"), rels = bmc_rels, colors = list(lightblue = c("bird_mammal_transect","bird_mammal_observation"), lightyellow = c("bird_mammal_species","bird_mammal_behavior"), white = "dataset")) ``` ## Validate + Preview ```{r} #| label: validate results <- validate_for_release(con, checks = "all", strict = FALSE) cat("Validation:", ifelse(results$passed, "PASSED", "FAILED"), "\n") # orphan check: observations whose gis_key is not in transects n_orphan <- dbGetQuery(con, "SELECT COUNT(*) FROM bird_mammal_observation o LEFT JOIN bird_mammal_transect t USING(gis_key) WHERE t.gis_key IS NULL")[[1]] cat(glue("observation gis_key orphans (no transect): {n_orphan}"), "\n") ``` ```{r} #| label: preview cols <- dbGetQuery(con, "SELECT column_name FROM information_schema.columns WHERE table_name='bird_mammal_transect' AND data_type NOT LIKE 'GEOMETRY%'")$column_name dbGetQuery(con, glue("SELECT {paste(cols, collapse=', ')} FROM bird_mammal_transect LIMIT 100")) |> datatable(caption = "bird_mammal_transect — first 100", rownames = FALSE, filter = "top") ``` ## Questions for Data Providers ```{r} #| label: provider-questions # one validated read + render for every ingest: the vocabulary and the column # order live in calcofi4db, not in 16 hand-written factor() calls questions_datatable( here(cc$questions_file), caption = "Questions for the Farallon bird/mammal data providers (ranked)") ``` ## Emit Core Tables Project this dataset into the shared consolidated core model (`design_env-bio-consolidation.md`). These core tables **are** this ingest's output: `release_database.qmd` concatenates the per-dataset shards rather than re-deriving the core from per-dataset tables, so there is exactly one projection to keep correct. The seabird/mammal source records one row per (transect, species, **behavior**). The `obs` headline is one row per (transect, species) with `count` summed across behaviors — otherwise the same birds are counted once per behavior code — and the behavior breakdown becomes `obs_attribute` rows carrying the behavior label. ### Taxon vocabulary The vocabulary is **declared** here and **resolved** by calcofi4db (taxon plan D1–D3, ≥ 3.29.0): `append_dataset_taxon()` stages one `dataset_taxon` row per code with `taxon_key` empty; `ensure_taxon_xref()` / `ensure_taxon_lineage()` resolve ids and classification against WoRMS + ITIS (cached under `metadata/`); `resolve_dataset_taxon()` mints the key from the **class** — `itis:<tsn>` exactly when the class is Aves and an accepted TSN resolves, else `worms:<aphia>` — never from a source flag. There is no farallon arm in the package any more; what the arm used to hard-code is now registry rows, and `check_dataset_taxon()` halts the render if a code the observations use is neither staged nor deliberately excluded. What goes in, and what is left out (D3): - every code DataZoo's `include_flag` admitted (the 156 codes released at v2026.08.25, minus `CSLI` and `XAMU`, which ERDDAP retired unreferenced — their observations carry `CASL` and `GUMU`/`SCMU`). Excluded codes keep a NULL `taxon_key` on their observations, as before. - codes ERDDAP added since DataZoo (44) have no include flag. Those the observations reference are decided one by one in the chunk; the rest are neither staged nor excluded until Farallon Institute flags them (Q10). `SBIG` is staged although unreferenced: it is the provider's current code for the taxon `MEGU` records. - `MEGU` (71 observations, absent from `CAC_FI_SBAS_sp`) is added: the pre-2021 Mew Gull code, the same bird the source now lists as `SBIG` (Q10). - the "Unidentified X" classes resolve to Aves `itis:174371` / Mammalia `worms:1837` through `metadata/taxon_override.csv` rows — the fallback that used to be hard-coded in the package's farallon arm. ```{r} #| label: taxon-stage ds_key <- "farallon_bird-mammal" # registries. measurement_taxon.csv has no farallon rows (this dataset's taxa are # a vocabulary, not measurement-type names) but the resolvers take it for # uniformity, filtered to THIS dataset; taxon_override.csv is read whole and # every helper filters to ds_key itself (a row for a dataset absent from this # connection is that dataset's business). mt_taxon <- read_csv(here("metadata/measurement_taxon.csv"), col_types = cols(worms_id = "i", itis_id = "i", bin_value = "d", .default = "c")) |> filter(dataset_key == ds_key) tx_over <- read_csv(here("metadata/taxon_override.csv"), show_col_types = FALSE) obs_codes <- dbGetQuery(con, "SELECT DISTINCT species_code FROM bird_mammal_observation")$species_code # ERDDAP-only codes the observations reference, decided one by one. DataZoo's # include flag drew the line at seabirds, marine mammals and sea turtles; the # same line is drawn here, and the list is asserted complete so a code that # appears on a re-pull cannot slip through undecided. erddap_only <- tibble::tribble( ~species_code, ~stage, ~why, "GUMU", TRUE, "Guadalupe Murrelet - seabird (the post-2012 split of Xantus's Murrelet XAMU)", "SCMU", TRUE, "Scripps's Murrelet - seabird (the other half of that split)", "CHSP", TRUE, "Chapman's Storm-Petrel - seabird, a Leach's subspecies", "TOSP", TRUE, "Townsend's Storm-Petrel - seabird", "NABO", TRUE, "Nazca Booby - seabird", "MABO", TRUE, "Masked Booby - seabird", "LOTU", TRUE, "Loggerhead Turtle - sea turtle, as DataZoo included GRTU / RITU", "UNLP", TRUE, "Unidentified Leach's Storm-Petrel - seabird class, like the other UN** classes", "UNMT", TRUE, "Unidentified Murrelet - seabird class, like the other UN** classes", "CRAB", FALSE, "'Crab pot' - gear, not an organism", "FISH", FALSE, "unidentified fish - DataZoo excluded every fish (UNFI, BLSH, MOLA, ...)", "TUNA", FALSE, "'Tuna' - a fish, no rank stated", "VEVE", FALSE, "Velella velella - a hydrozoan; the census vocabulary is birds, mammals, turtles", "RAPT", FALSE, "unidentified raptor - land-bird class, as DataZoo excluded UNPA / UNHU", "WIWA", FALSE, "Wilson's Warbler - land bird, as DataZoo excluded YRWA / BRSP / EUST") new_ref <- d_species$species_code[is.na(d_species$include_flag) & d_species$species_code %in% obs_codes] stopifnot( "every ERDDAP-only code the observations reference must be decided in erddap_only" = setequal(new_ref, erddap_only$species_code)) staged_codes <- d_species |> filter(include_flag %in% TRUE | species_code %in% erddap_only$species_code[erddap_only$stage] | species_code == "SBIG") |> pull(species_code) excluded_codes <- setdiff(obs_codes, c(staged_codes, "MEGU")) # the declaration: code, the source's name and common name, and the id the # source supplied (DataZoo's TSN, NA for an ERDDAP-only code) -- which # append_dataset_taxon() stores as ds_source_json, the audit value below d_vocab <- d_species |> filter(species_code %in% staged_codes) |> transmute(ds_taxa_code = species_code, ds_scientific_name = scientific_name, ds_common_name = common_name, itis_id) |> bind_rows(tibble( ds_taxa_code = "MEGU", ds_scientific_name = "Larus brachyrhynchus", ds_common_name = "Mew Gull", # DataZoo's TSN (176832, Larus canus -- the pre-split name) rides along as # the source claim; the override row keys the code to the Short-billed # Gull like SBIG (Q10) itis_id = d_datazoo$itis_id[d_datazoo$species_code == "MEGU"])) n_staged <- append_dataset_taxon(con, ds_key, d_vocab) # cross-reference: resolve each taxon against BOTH authorities (cached in # metadata/taxon_xref.csv, so a re-run costs no API calls) -- the TSN crosswalk # where the source gave a TSN, the name where it gave nothing; fills the # opposite authority's id as a cross-reference, replaces a deprecated id by its # accepted form so the key is always an accepted id, and fetches the real # taxonomic_status with the date it was checked. Must precede the lineage fetch. ensure_taxon_xref(con, mt_taxon, tx_over, cache_csv = here("metadata/taxon_xref.csv")) # lineage: each taxon's classification (cached in metadata/taxon_lineage.csv), # staged as the `taxon` hierarchy build_taxon_reference() reads and the source # of the CLASS the key rule reads. Without it a taxon reaches the release with a # key and a name and nothing else -- no rank, no parent, no classification. ensure_taxon_lineage(con, mt_taxon, tx_over, cache_csv = here("metadata/taxon_lineage.csv")) n_taxon <- build_taxon_reference(con, mt_taxon, tx_over) n_ds_taxon <- resolve_dataset_taxon(con, mt_taxon, tx_over) n_tx_group <- build_taxon_group(con, read_taxon_group_rules(here("metadata/taxon_group.csv"))) # the ingest asserts its own crosswalk (D6): every code the observations use is # staged or deliberately excluded, every staged row keys an authority id, every # Aves taxon keys itis:. Halts the render on any finding. chk <- check_dataset_taxon(con, ds_key, codes = setdiff(obs_codes, excluded_codes)) cat(glue("vocabulary: {n_staged} codes staged; {length(excluded_codes)} of the ", "{length(obs_codes)} observed codes excluded; taxon {n_taxon}, ", "dataset_taxon {n_ds_taxon}, taxon_group {n_tx_group}"), "\n") cat("excluded (their observations keep a NULL taxon_key):", paste(sort(excluded_codes), collapse = " "), "\n") ``` The audit: what the **source** claimed (DataZoo's TSN per code, kept in `dataset_taxon.ds_source_json`) against what the **authority** says (`taxon.itis_id` of the key the code resolved to). Every differing row must be one of three things, and the table says which: a deprecated TSN re-keyed onto its accepted form (`taxon.notes` records it), an override row (`taxon_override.csv`, with its note), or a taxon the source gave no TSN for. Never a silent pick. ```{r} #| label: taxon-audit tx_over_ds <- tx_over |> filter(dataset_key == ds_key) audit <- dbGetQuery(con, " SELECT d.ds_taxa_code, d.ds_scientific_name, d.ds_common_name, json_extract(d.ds_source_json, '$.itis_id')::INTEGER AS source_itis_id, t.itis_id, t.worms_id, t.scientific_name, d.taxon_key, t.notes FROM dataset_taxon d JOIN taxon t USING (taxon_key) WHERE d.dataset_key = ? AND json_extract(d.ds_source_json, '$.itis_id')::INTEGER IS DISTINCT FROM t.itis_id ORDER BY d.ds_taxa_code", params = list(ds_key)) |> mutate( override = tx_over_ds$note[match(ds_taxa_code, tx_over_ds$match_value)], explained_by = case_when( !is.na(override) ~ "override row (taxon_override.csv)", !is.na(source_itis_id) & str_detect(coalesce(notes, ""), fixed(as.character(glue("itis:{source_itis_id} deprecated in ITIS")))) ~ "deprecated TSN re-keyed onto its accepted form (taxon.notes)", is.na(source_itis_id) ~ "no source TSN; resolved by crosswalk or name (taxon.notes)", TRUE ~ "UNEXPLAINED")) n_agree <- dbGetQuery(con, " SELECT COUNT(*) FROM dataset_taxon d JOIN taxon t USING (taxon_key) WHERE d.dataset_key = ? AND json_extract(d.ds_source_json, '$.itis_id')::INTEGER = t.itis_id", params = list(ds_key))[[1]] stopifnot("every audit row must be explained" = !any(audit$explained_by == "UNEXPLAINED")) cat(glue("audit: {n_agree} codes where the source TSN is the key's own TSN; ", "{nrow(audit)} differ -- ", "{paste(names(table(audit$explained_by)), table(audit$explained_by), sep = ': ', collapse = '; ')}"), "\n") # the D3 rows, asserted rather than described dt <- dbGetQuery(con, "SELECT ds_taxa_code, taxon_key FROM dataset_taxon WHERE dataset_key = ?", params = list(ds_key)) key_of <- function(code) dt$taxon_key[dt$ds_taxa_code == code] unid_birds <- tx_over_ds$match_value[tx_over_ds$itis_id %in% 174371L] unid_mammals <- tx_over_ds$match_value[tx_over_ds$worms_id %in% 1837L] stopifnot( "SBIG is staged exactly once" = sum(dt$ds_taxa_code == "SBIG") == 1, "MEGU keys the same taxon as SBIG (Q10)" = identical(key_of("MEGU"), key_of("SBIG")), "MEGU / SBIG key an accepted ITIS TSN" = str_starts(key_of("SBIG"), "itis:"), "every unidentified bird class keys Aves" = all(dt$taxon_key[dt$ds_taxa_code %in% unid_birds] == "itis:174371"), "every unidentified mammal class keys Mammalia" = all(dt$taxon_key[dt$ds_taxa_code %in% unid_mammals] == "worms:1837"), "no excluded code has a dataset_taxon row" = !any(excluded_codes %in% dt$ds_taxa_code)) cat(glue("D3: SBIG once; MEGU = SBIG = {key_of('SBIG')}; ", "{sum(dt$ds_taxa_code %in% unid_birds)} unidentified bird classes -> itis:174371, ", "{sum(dt$ds_taxa_code %in% unid_mammals)} unidentified mammal classes -> worms:1837"), "\n") audit |> select(ds_taxa_code, ds_scientific_name, source_itis_id, itis_id, worms_id, scientific_name, taxon_key, explained_by, override) |> datatable(caption = "Source TSN (DataZoo) vs the authority TSN of the resolved key -- every row explained", rownames = FALSE, filter = "top") ``` ### Sample, obs, obs_attribute ```{r} #| label: emit_core # This projection lives here, in the notebook that owns the dataset, not in a # switch(dataset_key, ...) arm inside calcofi4db. The reusable SHAPE stays in the # package (sample_arm_self), so this is a declaration. append_sample(con, sample_arm_self( ds_key, "bird_mammal_transect", "gis_key", "transect")) # obs — the occurrence headline: one row per (transect, SPECIES CODE), count # SUMmed across behaviors. # # Grouping is on the source species_code, NOT on taxon_key alone: the excluded # codes (excluded_codes, above) have no taxon, so grouping by taxon_key alone # would sum every excluded species into a single NULL-taxon row per transect, # silently merging distinct species. taxon_key is functionally determined by # species_code (dataset_taxon is unique on ds_taxa_code within a dataset), so # carrying both does not split the grain. # # The behavior breakdown is sub-occurrence detail and goes to obs_attribute — it # must NOT ride on the headline's life_stage, or the same bird is counted once # per behavior code. append_obs(con, glue(" SELECT 'bio', '{ds_key}', {ns_key(ds_key, 'transect', 'tr.gis_key')}, tr.grid_key, tr.cruise_key, tr.latitude, tr.longitude, CAST(tr.datetime_start_utc AS TIMESTAMP), 0::DOUBLE, 0::DOUBLE, dt.taxon_key, NULL::VARCHAR, 'count', CAST(SUM(o.count) AS DOUBLE), NULL::VARCHAR, NULL::DOUBLE FROM bird_mammal_observation o JOIN bird_mammal_transect tr USING (gis_key) LEFT JOIN dataset_taxon dt ON dt.dataset_key = '{ds_key}' AND dt.ds_taxa_code = CAST(o.species_code AS VARCHAR) GROUP BY tr.gis_key, tr.grid_key, tr.cruise_key, tr.latitude, tr.longitude, tr.datetime_start_utc, o.species_code, dt.taxon_key")) # obs_attribute — the behavior breakdown, one row per source (transect, species, # behavior): measurement_type = 'behavior', bin_label = the behavior description, # bin_value NULL (behavior is categorical, not a numeric bin). append_obs_attribute(con, glue(" SELECT '{ds_key}', {ns_key(ds_key, 'transect', 'tr.gis_key')}, dt.taxon_key, NULL::VARCHAR, 'behavior', NULL::DOUBLE, bb.description, CAST(o.count AS INTEGER), NULL::VARCHAR FROM bird_mammal_observation o JOIN bird_mammal_transect tr USING (gis_key) LEFT JOIN dataset_taxon dt ON dt.dataset_key = '{ds_key}' AND dt.ds_taxa_code = CAST(o.species_code AS VARCHAR) LEFT JOIN bird_mammal_behavior bb ON bb.behavior_code = o.behavior_code")) core <- list( sample = dbGetQuery(con, "SELECT COUNT(*) FROM sample")[[1]], obs = dbGetQuery(con, "SELECT COUNT(*) FROM obs")[[1]], obs_attribute = dbGetQuery(con, "SELECT COUNT(*) FROM obs_attribute")[[1]], taxon = n_taxon, dataset_taxon = n_ds_taxon, taxon_group = n_tx_group) cat(glue( "core projection — sample={core$sample %||% 0} obs={core$obs %||% 0} ", "obs_attribute={core$obs_attribute %||% 0} ", "taxon={core$taxon %||% 0} dataset_taxon={core$dataset_taxon %||% 0} ", "taxon_group={core$taxon_group %||% 0}\n")) # the headline must collapse behaviors, and the attribution must add back up n_obs <- core$obs # one headline row per (transect, species_code) — NOT per behavior, and NOT # collapsed by taxon_key (the excluded codes have none; grouping on taxon_key # alone would merge every excluded species into one row per transect) n_exp <- dbGetQuery(con, " SELECT COUNT(*) FROM ( SELECT tr.gis_key, o.species_code FROM bird_mammal_observation o JOIN bird_mammal_transect tr USING (gis_key) GROUP BY 1, 2)")[[1]] n_mismatch <- dbGetQuery(con, " WITH a AS (SELECT sample_key, taxon_key, SUM(count) s FROM obs_attribute WHERE measurement_type = 'behavior' GROUP BY 1, 2), o AS (SELECT sample_key, taxon_key, SUM(measurement_value) v FROM obs GROUP BY 1, 2) SELECT COUNT(*) FROM a JOIN o USING (sample_key, taxon_key) WHERE a.s <> o.v")[[1]] # regression guard: grouping the headline on taxon_key alone (instead of # species_code) merged every excluded species on a transect into ONE NULL-taxon # row. If that ever comes back, transects with several excluded species collapse # to a single row and this max drops to 1. n_null_max <- dbGetQuery(con, " SELECT COALESCE(MAX(n), 0) FROM ( SELECT sample_key, COUNT(*) n FROM obs WHERE taxon_key IS NULL GROUP BY 1)")[[1]] n_null <- dbGetQuery(con, "SELECT COUNT(*) FROM obs WHERE taxon_key IS NULL")[[1]] # the NULL-taxon rows must be exactly the excluded codes' rows: a staged code # with no key would be a resolution failure check_dataset_taxon() should have # caught, and an excluded code with a key would be a leak excluded_sql <- paste0("'", excluded_codes, "'", collapse = ", ") n_null_bad <- dbGetQuery(con, glue(" SELECT COUNT(*) FROM bird_mammal_observation o LEFT JOIN dataset_taxon dt ON dt.dataset_key = '{ds_key}' AND dt.ds_taxa_code = o.species_code WHERE (dt.taxon_key IS NULL) <> (o.species_code IN ({excluded_sql}))"))[[1]] stopifnot( "obs must be one row per (transect, species), not per behavior" = n_obs == n_exp, "obs_attribute behavior counts must sum to the obs headline" = n_mismatch == 0, "a NULL taxon_key is an excluded code and nothing else" = n_null_bad == 0, "excluded species must stay distinct, not merge into one NULL-taxon row per transect" = n_null_max > 1, "every obs.sample_key must resolve in sample" = dbGetQuery(con, "SELECT COUNT(*) FROM obs o LEFT JOIN sample s USING (sample_key) WHERE s.sample_key IS NULL")[[1]] == 0, "every obs.taxon_key must RESOLVE in taxon (not merely be non-NULL)" = dbGetQuery(con, "SELECT COUNT(*) FROM obs o LEFT JOIN taxon t USING (taxon_key) WHERE o.taxon_key IS NOT NULL AND t.taxon_key IS NULL")[[1]] == 0, "behavior is the only obs_attribute type here" = dbGetQuery(con, "SELECT COUNT(*) FROM obs_attribute WHERE measurement_type <> 'behavior'")[[1]] == 0) cat(glue("obs parity: {format(n_obs, big.mark = ',')} headline rows ", "({format(n_null, big.mark = ',')} without taxon_key = the ", "{length(excluded_codes)} excluded codes, up to {n_null_max} of them ", "on one transect); behavior attribution reconciles"), "\n") ``` ## Write Outputs + Upload ```{r} #| label: outputs dir_create(dir_parquet) tbls_out <- core_output_tables(con, extra = "dataset") write_parquet_outputs( con = con, output_dir = dir_parquet, tables = tbls_out, sort_by = list(obs = c("grid_key", "measurement_type")), strip_provenance = FALSE) build_relationships_json( rels = core_relationships(tbls_out), output_dir = dir_parquet, provider = provider, dataset = dataset) d_tbls_rd <- read_csv(here("metadata/farallon/bird-mammal/tbls_redefine.csv")) d_flds_rd <- read_csv(here("metadata/farallon/bird-mammal/flds_redefine.csv")) build_metadata_json( con = con, d_tbls_rd = d_tbls_rd, d_flds_rd = d_flds_rd, # shared core descriptions first, this dataset's overrides second metadata_derived_csv = c( here("metadata/core_dictionary.csv"), here("metadata/farallon/bird-mammal/metadata_derived.csv")), output_dir = dir_parquet, tables = tbls_out, set_comments = TRUE, provider = provider, dataset = dataset, workflow_url = cc$workflow_url, tables_owned = tables_owned, # when the ERDDAP tables were fetched (Read Source Data) -> metadata.json sources[] sources = src_stamp) if (publish_to_gcs) { sync_to_gcs(local_dir = dir_stage, sidecar_dir = dir_parquet, gcs_prefix = glue("ingest/{dir_label}"), bucket = "calcofi-db") } else { cat("publish_to_gcs is FALSE -- parquet kept local, NOT synced to gs://calcofi-db\n") } ``` ```{r} #| label: cleanup close_duckdb(con) cat(glue("Parquet outputs written to: {dir_parquet}"), "\n") ```
