title: "Ingest CalCOFI CTD Derived Hydrographic Products"
calcofi:
target_name: ingest_calcofi_ctd_derived
workflow_type: ingest
dependency:
- ingest_calcofi_ctd_cast
output: data/parquet/calcofi_ctd-derived/manifest.json
provider: calcofi
dataset: ctd-derived
workflow_url: https://calcofi.io/workflows/ingest_calcofi_ctd-derived.html
questions_file: metadata/calcofi/ctd-derived/questions.csv
# in the release: Ben (2026-09-23) decided to build with the current defaults;
# Q01, Q02 and Q05 are answered and applied (2026-10-01), Q03/Q04 (geostrophic,
# not released) are still proposed, so nothing here is a blocker
in_release: true
dataset_meta:
dataset_name: CalCOFI CTD Derived Hydrographic Products
dataset_name_short: CTD Derived Products
category: Physical Oceanography
color: "#0f7a5a"
# publishes no `sample`: every row hangs off the calcofi_ctd-cast cast it was
# computed from, so the cast keeps ONE sample row (sample_key is globally unique
# across shards and a second copy would fail assemble_core())
# the tables the RELEASE carries (datasets.json `tables`). ctd_geostrophic is
# computed and staged here but release_database.qmd does not publish it while its
# shelf-pair speeds are under review (questions Q03, Q04; CalCOFI/workflows#103),
# so it is not listed: a listed table is a promise to a reader
tables_owned:
- {table: obs, shared: true, note: "per-bin spiciness0, sigma_theta_ave and buoyancy_n2 (TEOS-10 N2, 10 m running mean) at the depths calcofi_ctd-cast publishes in obs"}
- {table: sample_measurement, shared: true, note: "per-cast mixed-layer depth (the provider's sigma-theta 0.02 kg/m3 from 10 m, plus the 0.125 and temperature 0.2 alternatives), depth of the chlorophyll-a maximum (3 m running mean), integrated chlorophyll-a (sum of the 1 m bins, 0-200 m), the hypoxic boundary depths (shallowest crossing of 2.4, 1.4 and 0.5 mL/L oxygen), the nitracline depth (1 umol/L estimated nitrate), the pycnocline depth (maximum N2 in 10-200 m) and that maximum"}
- {table: measurement_type, shared: true, note: "shared registry across datasets"}

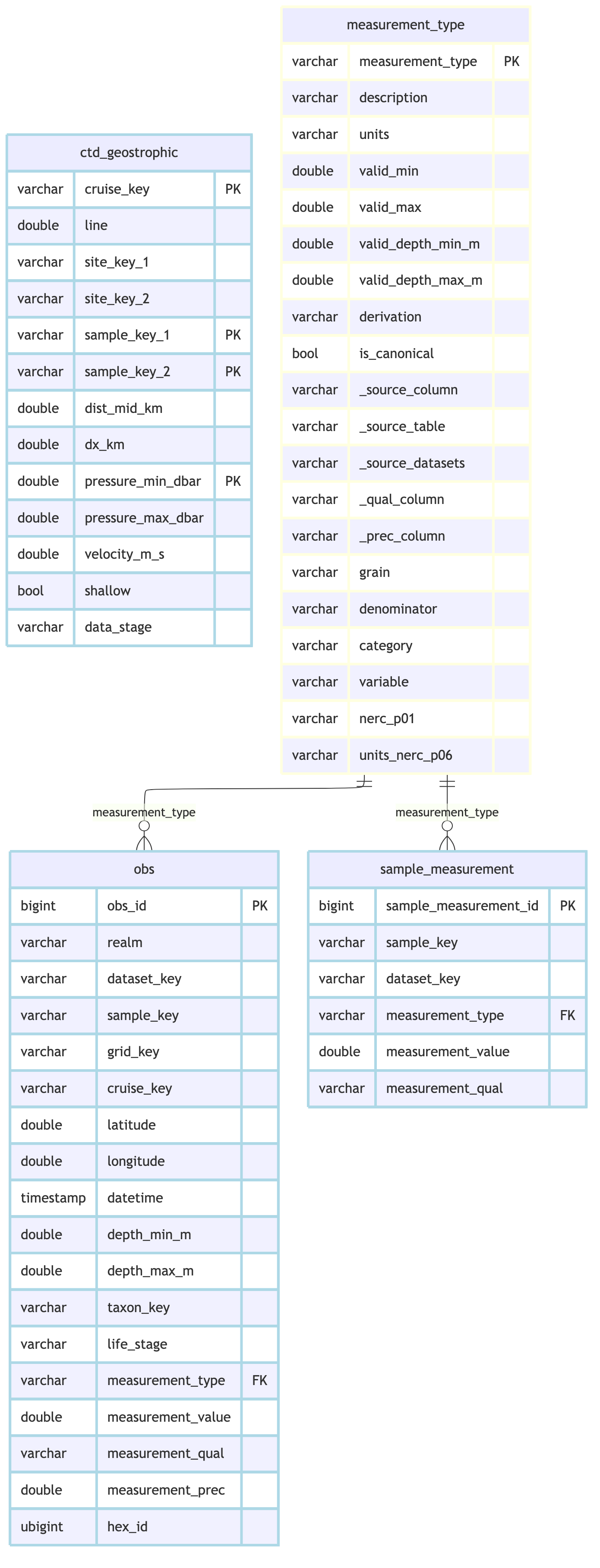

erd:
color: "#cfe8dc"
editor_options:
chunk_output_type: console
---
## Overview
Hydrographic products **derived** from the CalCOFI CTD cast profiles rather than
measured, asked for by Rasmus Swalethorp (CTD-on-EDI meeting 2026-09-16; email
2026-09-22) to show, cruise by cruise, "how much upwelling might be going on on our
grid at that specific time of the cruise, how much productivity might there be" and
the California Undercurrent an El Niño should strengthen. The plan is
[CalCOFI/workflows#98](https://github.com/CalCOFI/workflows/issues/98), one issue per
product (#99–#103); the prototype on one cruise was
`explore_calcofi_ctd-derived.qmd` (workflows#107).
- **Source**: the `calcofi_ctd-cast` ingest's full-resolution 1 m bins
(`obs_ctd_full`), read from its staged output when that is current, otherwise
from the release — see [Input](#input).
- **Every rule is a tested calcofi4db function** (the first version after 4.17.2,
which carries the provider's definitions; 4.32.0 for the threshold depths and
N²): `ctd_spice()`, `ctd_sigma_theta_ave()`, `ctd_mld()`, `ctd_chl_max()`,
`ctd_integrate()`, `ctd_geostrophic()`, `ctd_hypoxic_depth()`,
`profile_threshold_depth()`, `ctd_n2()`, `ctd_pycnocline()`. This notebook
only applies them.
- **The threshold depths are the provider's definitions** (Rasmus Swalethorp,
email 2026-09-24, "Next Two Weeks Tasks"; his D_NClineDepth.m and
F_PycnoclineDepth.m; [Questions](#questions-for-data-providers) Q10, Q11): the
**nitracline** is the depth at which nitrate reaches 1 µmol/L, interpolated
linearly between the bracketing bins (`nitracline_depth`, from the bottle-fitted
sensor estimate `est_nitrate_sta_corr`; the bottle database's own nitracline is
`calcofi_bottle-derived`'s); the **hypoxic boundary depths** are the same rule
on the station-corrected oxygen at 2.4 mL/L (mild hypoxic boundary,
`hypoxic_depth_24`), 1.4 (hypoxic boundary, `hypoxic_depth_14`) and 0.5
(severe, the OMZ core, `hypoxic_depth_05`), always the **shallowest** crossing;
the **pycnocline** is the depth of the maximum buoyancy frequency squared N²
(TEOS-10 `gsw_Nsquared`, a 10 m running mean) between 10 and 200 m
(`pycnocline_depth`, with `buoyancy_n2_max`), and N² itself is published per bin
(`buoyancy_n2`) for the transect plotter.
- **The headline definitions are the provider's** (Rasmus Swalethorp, 2026-09-23;
adopted 2026-10-01, [Questions](#questions-for-data-providers) Q01, Q02): the
mixed-layer depth is where sigma-theta is 0.02 kg m⁻³ greater than at 10 m
(`mld_sigma_theta_002`), the depth of the chlorophyll-a maximum is the highest
value of a 3 m running mean, and integrated chlorophyll-a is the sum of the 1 m
bins over the top 200 m. The interim headline MLD of v2026.10.01
(`mld_sigma_theta_003`, Δσθ 0.03) is retired; the 0.125 and temperature 0.2 °C
criteria are kept beside the headline. The geostrophic choices (Q03, Q04) are
still open, so `ctd_geostrophic` is staged but not released.
```{mermaid}
graph LR
A[calcofi_ctd-cast<br/>obs_ctd_full, 1 m bins] --> B[drop 8/9 flags<br/>tier rule]
B --> C[per bin: spiciness0,<br/>sigma_theta_ave, buoyancy_n2]
B --> D[per cast: MLD x3, chl max,<br/>integrated chl, hypoxic depths x3,<br/>nitracline, pycnocline + N2 max]
B --> E[per station pair:<br/>geostrophic velocity]
C --> F[(obs, at the depths<br/>ctd-cast publishes)]
D --> G[(sample_measurement<br/>on the ctd-cast cast)]
E --> H[(ctd_geostrophic<br/>staged, not released)]
```
**The tier rule.** `final` and `preliminary_with_bottle` casts get every product.
`preliminary_without_bottle` casts have no bottle-corrected salinity, oxygen or
nitrate and no chlorophyll estimate, so they get **only the temperature-criterion
MLD** — nothing salinity-, oxygen- or nitrate-based (Rasmus, 2026-09-09:
uncorrected sensors are not shown).
## Setup
```{r}
#| label: setup
devtools::load_all(here::here("../calcofi4db"))
librarian::shelf(
CalCOFI/calcofi4db, CalCOFI/calcofi4r,
DBI, dplyr, DT, fs, glue, here, jsonlite, purrr, readr, tibble, tidyr,
quiet = T)
options(readr.show_col_types = F)
options(DT.options = list(scrollX = TRUE))
stopifnot(
"calcofi4db >= 4.16.0 carries the ctd_* derived-product rules" =
exists("ctd_geostrophic", mode = "function"),
"calcofi4db >= 4.27.0 carries merge_source_datasets() (spiciness0 is shared with calcofi_bottle-derived)" =
exists("merge_source_datasets", mode = "function"),
"calcofi4db with the provider's definitions (ctd_integrate(method =), the 3 m mean) is needed" =
"method" %in% names(formals(ctd_integrate)) && formals(ctd_chl_max)$window_m == 3,
"calcofi4db >= 4.32.0 carries the threshold depths and N2 (profile_threshold_depth, ctd_hypoxic_depth, ctd_n2, ctd_pycnocline)" =
all(vapply(c("profile_threshold_depth", "ctd_hypoxic_depth", "ctd_n2", "ctd_pycnocline"),
exists, logical(1), mode = "function")))
source(here("libs/ingest.R"))
cc <- read_calcofi_meta(here("ingest_calcofi_ctd-derived.qmd"))
provider <- cc$provider
dataset <- cc$dataset
dataset_name <- cc$dataset_meta$dataset_name
tables_owned <- cc$tables_owned
ds_key <- glue("{provider}_{dataset}")
src_key <- "calcofi_ctd-cast"
dir_label <- ds_key
dir_meta <- here(glue("metadata/{provider}/{dataset}"))
dir_parquet <- here(glue("data/parquet/{dir_label}"))
dir_stage <- cc_stage_path("parquet", dir_label, create = TRUE)
db_path <- here(glue("data/wrangling/{dir_label}.duckdb"))
meas_type_csv <- here("metadata/measurement_type.csv")
# the criteria, in one place. Q01 and Q02 are the provider's answers (Rasmus
# Swalethorp 2026-09-23, adopted 2026-10-01); Q03 and Q04 are still proposed
p <- list(
mld_ref_m = 10, # Q01: "0.02 kg/m3 greater [than at] a reference depth of 10 m"
mld_sigma = 0.02, # Q01: the headline, mld_sigma_theta_002
mld_sigma_alt = 0.125, # kept beside it (Levitus 1982), mld_sigma_theta_0125
mld_temp = 0.2, # the only MLD a preliminary_without_bottle cast can have
chl_window = 3, # Q02: "a 3 m running mean"
chl_z_max = 200, # Q02: "the top 200m or as deep as the station was"
chl_top_max = 5,
chl_method = "sum", # Q02: "sum up all the 1m bins" (trapezoid is for bottles)
geo_p_ref = 500, # Q03
geo_min_dx = 10, # Q04
geo_bin = 10,
# Rasmus Swalethorp, 2026-09-24 (questions Q10, Q11)
hyp_thresholds = c(hypoxic_depth_24 = 2.4, hypoxic_depth_14 = 1.4, hypoxic_depth_05 = 0.5), # mL/L: mild, hypoxic, severe (OMZ core)
nc_threshold = 1, # umol/L: "depth at which nitrate is equal to or just above 1uM"
surface_max = 20, # m: a profile already past the threshold at its first bin counts only when that bin is this shallow (D_NClineDepth.m)
n2_smooth_m = 10, # m: running mean on N2 (the Matlab's 10 m centred difference; Q11)
pyc_p_min = 10, # m: the search window for the N2 maximum (F_PycnoclineDepth.m, Fiedler et al. 2013)
pyc_p_max = 200,
pyc_surface_max = 15, # m: the cast must start this shallow ...
pyc_depth_min = 50) # m: ... and reach this deep
tier_full <- c("final", "preliminary_with_bottle")
# a DuckDB memory ceiling sized to the machine (40 % of RAM, at most 8 GB) unless
# the environment sets one: this runs on a laptop beside everything else
ram_gb <- tryCatch({
if (Sys.info()[["sysname"]] == "Darwin")
as.numeric(system("sysctl -n hw.memsize", intern = TRUE)) / 2^30
else as.numeric(sub("\\D+(\\d+).*", "\\1",
grep("^MemTotal", readLines("/proc/meminfo"), value = TRUE))) / 2^20
}, error = function(e) 8)
mem_limit <- Sys.getenv("CALCOFI_DUCKDB_MEMORY_LIMIT",
glue("{max(1, floor(min(8, 0.4 * ram_gb)))}GB"))
cat(glue("DuckDB memory_limit {mem_limit} (RAM {round(ram_gb)} GB)"), "\n")
if (overwrite) {
for (f in c(db_path, paste0(db_path, ".wal"))) if (file_exists(f)) file_delete(f)
if (dir_exists(paste0(db_path, ".tmp"))) dir_delete(paste0(db_path, ".tmp"))
}
dir_create(dirname(db_path))
con <- get_duckdb_con(db_path, config = list(memory_limit = mem_limit))
```
## Input {#input}
The derived products are computed from the **full-resolution** 1 m bins, never from
the thinned series in `obs`: an MLD or a chlorophyll maximum read off a 10 m grid is
biased toward the grid. The preferred input is the `calcofi_ctd-cast` ingest's own
staged output under `cc_stage_dir()` — the bytes the next release will be cut from —
used only if it is **current**: every partition's row count must equal what that
ingest's committed `manifest.json` recorded (its `data_hash` starts with the row
count). Otherwise the notebook reads the promoted release's `obs_ctd_full` through the
resolver helpers (`cc_catalog()` / `cc_release_sources()`), never a hand-built path.
```{r}
#| label: input
dir_src <- cc_stage_path("parquet", src_key)
mf_src <- read_json(here(glue("data/parquet/{src_key}/manifest.json")))
rows_of <- function(h) as.numeric(sub(":.*$", "", h))
stage_current <- local({
if (!dir_exists(dir_src)) return(FALSE)
exp_full <- vapply(mf_src$data_hash$obs_ctd_full, rows_of, numeric(1))
exp_obs <- vapply(mf_src$data_hash$obs, rows_of, numeric(1))
exp_smp <- rows_of(mf_src$data_hash$sample)
cnt <- function(sub, ck) {
f <- dir_ls(path(dir_src, sub, glue("cruise_key={ck}")), glob = "*.parquet")
if (!length(f)) return(NA_real_)
dbGetQuery(con, glue("SELECT COUNT(*) AS n FROM read_parquet([{paste0(\"'\", f, \"'\", collapse = ',')}])"))$n
}
got_full <- vapply(names(exp_full), function(ck) cnt("obs_ctd_full", ck), numeric(1))
got_obs <- vapply(names(exp_obs), function(ck) cnt("obs", ck), numeric(1))
got_smp <- dbGetQuery(con, glue("SELECT COUNT(*) AS n FROM read_parquet('{dir_src}/sample.parquet')"))$n
ok <- identical(unname(got_full), unname(exp_full)) &&
identical(unname(got_obs), unname(exp_obs)) && got_smp == exp_smp
cat(glue(
"stage {dir_src}: obs_ctd_full {sum(got_full, na.rm = TRUE)} / {sum(exp_full)} rows over ",
"{length(exp_full)} partitions, obs {sum(got_obs, na.rm = TRUE)} / {sum(exp_obs)}, ",
"sample {got_smp} / {exp_smp} -> {if (ok) 'CURRENT' else 'NOT current'}"), "\n")
ok
})
if (stage_current) {
input_used <- glue("staged calcofi_ctd-cast output ({dir_src}), current against its committed manifest.json")
src_full_of <- function(ck) glue("read_parquet('{dir_src}/obs_ctd_full/cruise_key={ck}/*.parquet')")
dbExecute(con, glue("CREATE OR REPLACE VIEW src_obs AS SELECT * FROM read_parquet('{dir_src}/obs/*/*.parquet', hive_partitioning = true)"))
dbExecute(con, glue("CREATE OR REPLACE VIEW src_sample AS SELECT * FROM read_parquet('{dir_src}/sample.parquet')"))
} else {
librarian::shelf(CalCOFI/calcofi4r, quiet = T)
cat_ <- calcofi4r::cc_catalog("latest")
input_used <- glue("release {cat_$version} obs_ctd_full via cc_release_sources() (the stage was absent or not current)")
invisible(dbExecute(con, "INSTALL httpfs; LOAD httpfs"))
src_f <- calcofi4r::cc_release_sources(cat_, "obs_ctd_full")
src_full_of <- function(ck) {
u <- grep(glue("cruise_key={ck}/"), src_f$urls, fixed = TRUE, value = TRUE)
glue("read_parquet([{paste0(\"'\", u, \"'\", collapse = ',')}], hive_partitioning = true)")
}
# the thinned CTD headline lives in obs_env since v2026.09 (obs is a view)
dbExecute(con, paste0("CREATE OR REPLACE VIEW src_obs AS SELECT * EXCLUDE (value), value AS measurement_value FROM ",
calcofi4r::cc_read_parquet_sql(calcofi4r::cc_release_sources(cat_, "obs_env")),
" WHERE dataset_key = 'calcofi_ctd-cast'"))
dbExecute(con, paste0("CREATE OR REPLACE VIEW src_sample AS SELECT * FROM ",
calcofi4r::cc_read_parquet_sql(calcofi4r::cc_release_sources(cat_, "sample"))))
}
cat(glue("input: {input_used}"), "\n")
```
## Casts
One cast per station occupation: exactly the casts `calcofi_ctd-cast` publishes in
`obs` (the down cast; the up cast only where no down cast exists — Q05), so a
derived value always sits on a cast a consumer can already see.
```{r}
#| label: casts
dbExecute(con, glue("
CREATE OR REPLACE TABLE casts AS
SELECT s.sample_key, s.cruise_key, s.site_key, s.grid_key, s.data_stage,
s.datetime, s.latitude, s.longitude
FROM src_sample s
WHERE s.dataset_key = '{src_key}' AND s.sample_type = 'cast'
AND s.sample_key IN (
SELECT DISTINCT sample_key FROM src_obs WHERE measurement_type = 'temperature_ave')"))
d_casts <- dbGetQuery(con, "SELECT * FROM casts")
d_casts |>
count(data_stage, dir = substr(sample_key, nchar(sample_key), nchar(sample_key)),
name = "casts") |>
datatable(caption = "Casts by data_stage and direction (d = down, u = up)", rownames = FALSE)
stopifnot(
"a cast must have a data_stage" = !anyNA(d_casts$data_stage),
"an unknown data_stage" = all(d_casts$data_stage %in% c(tier_full, "preliminary_without_bottle")))
```
## Compute the Products
Per cruise, the needed series are pivoted to one row per (cast, 1 m bin) with their
provider flags, then the calcofi4db rules run. A flag of 8 or 9 is dropped before
anything is computed — each function does it itself, from the flag passed beside
the value. The sensor-pair averages (`temperature_ave`, `salinity_ave_corr`) come
already rebuilt by the provider's flags in the ctd-cast ingest.
```{r}
#| label: compute
types <- c(
"pressure", "temperature_ave", "salinity_ave_corr", "sigma_theta_1", "sigma_theta_2",
"temperature_1", "temperature_2", "salinity_1", "salinity_2", # the sensors sigma-theta is computed from (flag audit)
"est_chlorophyll_a_sta_corr",
"oxygen_ml_l_ave_sta_corr", # the hypoxic boundary depths (mL/L, the provider's thresholds)
"est_nitrate_sta_corr") # the nitracline
pivot_sql <- function(ck) {
# a 1 m bin can hold two scans (the file repeats a depth); the value is their mean
# and the flag is 8/9 if EITHER scan is flagged, else whatever code the scans carry
# (a bare MAX() would let the string 'nan' outrank '9' and lose the flag)
flg <- "regexp_replace(CAST(measurement_qual AS VARCHAR), '\\.0+$', '') IN ('8', '9')"
cols <- unlist(lapply(types, function(tp) c(
glue("AVG(measurement_value) FILTER (WHERE measurement_type = '{tp}') AS \"{tp}\""),
glue("COALESCE(
MAX(measurement_qual) FILTER (WHERE measurement_type = '{tp}' AND {flg}),
MAX(measurement_qual) FILTER (WHERE measurement_type = '{tp}' AND measurement_qual NOT IN ('nan', '')))
AS \"q_{tp}\""))))
glue("
SELECT f.sample_key, f.depth_min_m AS depth_m,
ANY_VALUE(f.latitude) AS latitude, ANY_VALUE(f.longitude) AS longitude,
{paste(cols, collapse = ',\n ')}
FROM {src_full_of(ck)} f
WHERE f.sample_key IN (SELECT sample_key FROM casts WHERE cruise_key = '{ck}')
AND f.measurement_type IN ({paste0(\"'\", types, \"'\", collapse = ', ')})
GROUP BY f.sample_key, f.depth_min_m")
}
# the same flag normalization the rules use ("8.0" == "8")
is_flagged <- function(q) sub("\\.0+$", "", as.character(q)) %in% c("8", "9")
for (tb in c("bin_full", "cast_products", "geo_raw"))
dbExecute(con, glue("DROP TABLE IF EXISTS {tb}"))
flag_audit <- list()
t0 <- Sys.time()
cruises <- sort(unique(d_casts$cruise_key))
# diagnostics only (purl + source): the first n cruises; a real render leaves it unset
if (nzchar(Sys.getenv("CTD_DERIVED_TEST_N"))) cruises <- head(cruises, as.integer(Sys.getenv("CTD_DERIVED_TEST_N")))
for (ck in cruises) {
cst <- filter(d_casts, cruise_key == ck)
d <- dbGetQuery(con, pivot_sql(ck)) |>
left_join(select(cst, sample_key, data_stage, site_key), by = "sample_key") |>
arrange(sample_key, depth_m)
if (!nrow(d)) next
full <- d$data_stage %in% tier_full
# pressure where the file has it, else depth (< 1 % apart above 500 m)
pr <- coalesce(d$pressure, d$depth_m)
d$pr <- pr
# per bin (full tier only) ----
d$sigma_theta_ave <- ifelse(full, ctd_sigma_theta_ave(
d$sigma_theta_1, d$sigma_theta_2, d$q_sigma_theta_1, d$q_sigma_theta_2), NA_real_)
d$spiciness0 <- NA_real_
if (any(full))
d$spiciness0[full] <- ctd_spice(
d$temperature_ave[full], d$salinity_ave_corr[full], pr[full],
d$longitude[full], d$latitude[full],
d$q_temperature_ave[full], d$q_salinity_ave_corr[full])
# N2 is a property of the profile, not of a bin: one call per cast (d is sorted by
# sample_key, depth_m), on the full tier only
d$buoyancy_n2 <- NA_real_
for (sk in unique(d$sample_key[full])) {
i <- which(d$sample_key == sk)
d$buoyancy_n2[i] <- ctd_n2(
d$temperature_ave[i], d$salinity_ave_corr[i], pr[i], d$longitude[i], d$latitude[i],
d$q_temperature_ave[i], d$q_salinity_ave_corr[i], smooth_m = p$n2_smooth_m)
}
flag_audit[[ck]] <- tibble(
cruise_key = ck,
bins = nrow(d),
s1_flagged_s2_good = sum(full & is_flagged(d$q_sigma_theta_1) & !is_flagged(d$q_sigma_theta_2) &
!is.na(d$sigma_theta_2)),
avg_equals_s2 = sum(full & is_flagged(d$q_sigma_theta_1) & !is_flagged(d$q_sigma_theta_2) &
!is.na(d$sigma_theta_2) & abs(d$sigma_theta_ave - d$sigma_theta_2) < 1e-12,
na.rm = TRUE),
both_flagged_avg_present = sum(full & is_flagged(d$q_sigma_theta_1) & is_flagged(d$q_sigma_theta_2) &
!is.na(d$sigma_theta_ave)),
ts_flagged_spice_present = sum(full & (is_flagged(d$q_temperature_ave) | is_flagged(d$q_salinity_ave_corr)) &
!is.na(d$spiciness0)),
ts_flagged_n2_present = sum(full & (is_flagged(d$q_temperature_ave) | is_flagged(d$q_salinity_ave_corr)) &
!is.na(d$buoyancy_n2)),
# a sigma-theta sensor is bad when its own flag OR the temperature/salinity it is computed from is
# flagged 8/9 (ctd-cast inherits the latter onto the sigma flag; asserted here on what is averaged)
sigma_avg_has_flagged_sensor = {
bad1 <- is_flagged(d$q_sigma_theta_1) | is_flagged(d$q_temperature_1) | is_flagged(d$q_salinity_1)
bad2 <- is_flagged(d$q_sigma_theta_2) | is_flagged(d$q_temperature_2) | is_flagged(d$q_salinity_2)
a <- d$sigma_theta_ave
sum(full & !is.na(a) & (
(bad1 & bad2) |
(bad1 & !bad2 & (is.na(d$sigma_theta_2) | abs(a - d$sigma_theta_2) > 1e-9)) |
(bad2 & !bad1 & (is.na(d$sigma_theta_1) | abs(a - d$sigma_theta_1) > 1e-9))), na.rm = TRUE)
})
b <- d[full & (!is.na(d$sigma_theta_ave) | !is.na(d$spiciness0) | !is.na(d$buoyancy_n2)),
c("sample_key", "depth_m", "sigma_theta_ave", "spiciness0", "buoyancy_n2")]
if (nrow(b)) dbWriteTable(con, "bin_full", as.data.frame(b), append = TRUE)
# per cast ----
pc <- d |>
group_by(sample_key, data_stage) |>
group_modify(function(x, k) {
is_full <- k$data_stage %in% tier_full
out <- list(
ctd_mld(x$depth_m, x$temperature_ave, x$q_temperature_ave, criterion = "temperature",
threshold = p$mld_temp, ref_depth = p$mld_ref_m) |>
transmute(measurement_type = "mld_temperature_02", value = mld_m))
if (is_full) {
# sigma_theta_ave is already flag-filtered: ctd_sigma_theta_ave() dropped an
# 8/9 sensor above, and a bin with both sensors flagged is NA (no qual to pass)
out <- c(out, list(
ctd_mld(x$depth_m, x$sigma_theta_ave, criterion = "sigma_theta",
threshold = p$mld_sigma, ref_depth = p$mld_ref_m) |>
transmute(measurement_type = "mld_sigma_theta_002", value = mld_m),
ctd_mld(x$depth_m, x$sigma_theta_ave, criterion = "sigma_theta",
threshold = p$mld_sigma_alt, ref_depth = p$mld_ref_m) |>
transmute(measurement_type = "mld_sigma_theta_0125", value = mld_m)))
if (any(!is.na(x$est_chlorophyll_a_sta_corr))) {
cm <- ctd_chl_max(x$depth_m, x$est_chlorophyll_a_sta_corr,
x$q_est_chlorophyll_a_sta_corr, window_m = p$chl_window)
ci <- ctd_integrate(x$depth_m, x$est_chlorophyll_a_sta_corr,
x$q_est_chlorophyll_a_sta_corr,
z_max = p$chl_z_max, z_top_max = p$chl_top_max,
method = p$chl_method)
out <- c(out, list(tibble(
measurement_type = c("chl_max_depth", "chl_max", "chl_integrated", "chl_integrated_depth"),
value = c(cm$chl_max_depth_m, cm$chl_max_value, ci$integrated, ci$depth_reached_m))))
}
# the hypoxic boundary depths: the shallowest crossing of each threshold on the
# station-corrected oxygen pair average (Rasmus 2026-09-24; Q10)
if (any(!is.na(x$oxygen_ml_l_ave_sta_corr)))
out <- c(out, list(
ctd_hypoxic_depth(x$depth_m, x$oxygen_ml_l_ave_sta_corr, x$q_oxygen_ml_l_ave_sta_corr,
thresholds = p$hyp_thresholds, surface_max_m = p$surface_max) |>
transmute(measurement_type, value = depth_m)))
# the nitracline: where the bottle-fitted nitrate estimate reaches 1 umol/L (Q10)
if (any(!is.na(x$est_nitrate_sta_corr)))
out <- c(out, list(
profile_threshold_depth(x$depth_m, x$est_nitrate_sta_corr, x$q_est_nitrate_sta_corr,
threshold = p$nc_threshold, direction = "above",
surface_max_m = p$surface_max) |>
transmute(measurement_type = "nitracline_depth", value = depth_m)))
# the pycnocline: the maximum of the smoothed N2 in the 10-200 m window (Q11)
if (any(!is.na(x$buoyancy_n2))) {
pc <- ctd_pycnocline(x$depth_m, x$buoyancy_n2, p_min = p$pyc_p_min, p_max = p$pyc_p_max,
surface_max_m = p$pyc_surface_max, depth_min_m = p$pyc_depth_min)
out <- c(out, list(tibble(
measurement_type = c("pycnocline_depth", "buoyancy_n2_max"),
value = c(pc$pycnocline_depth_m, pc$n2_max))))
}
}
bind_rows(out)
}) |>
ungroup() |>
filter(!is.na(value))
if (nrow(pc)) dbWriteTable(con, "cast_products", as.data.frame(pc), append = TRUE)
# per station pair (full tier, on-grid stations) ----
gcst <- cst |>
filter(data_stage %in% tier_full,
grepl("^\\d{3}\\.\\d \\d{3}\\.\\d$", site_key)) |>
mutate(line = as.numeric(substr(site_key, 1, 5)), station = as.numeric(substr(site_key, 7, 11))) |>
group_by(site_key) |> slice_min(datetime, n = 1, with_ties = FALSE) |> ungroup()
for (ln in unique(gcst$line[duplicated(gcst$line)])) {
lc <- filter(gcst, line == ln)
gd <- d |>
inner_join(select(lc, sample_key, station, lat_c = latitude, lon_c = longitude), by = "sample_key") |>
transmute(station_order = station, station = site_key, latitude = lat_c, longitude = lon_c,
pressure = pr, temperature = temperature_ave, salinity = salinity_ave_corr,
q_temperature = q_temperature_ave, q_salinity = q_salinity_ave_corr)
g <- ctd_geostrophic(gd, p_ref = p$geo_p_ref, min_dx_km = p$geo_min_dx)
if (!nrow(g)) next
g <- g |>
mutate(pressure_min_dbar = floor((pressure - 1) / p$geo_bin) * p$geo_bin) |>
group_by(station_1, station_2, dist_mid_km, dx_km, shallow, pressure_min_dbar) |>
summarize(velocity_m_s = mean(velocity_m_s), .groups = "drop") |>
mutate(cruise_key = ck, line = ln, pressure_max_dbar = pressure_min_dbar + p$geo_bin,
sample_key_1 = lc$sample_key[match(station_1, lc$site_key)],
sample_key_2 = lc$sample_key[match(station_2, lc$site_key)],
data_stage = ifelse(
lc$data_stage[match(station_1, lc$site_key)] == "final" &
lc$data_stage[match(station_2, lc$site_key)] == "final",
"final", "preliminary_with_bottle"))
dbWriteTable(con, "geo_raw", as.data.frame(g), append = TRUE)
}
}
flag_audit <- bind_rows(flag_audit)
cat(glue("computed {length(cruises)} cruises in {format(round(Sys.time() - t0, 1))}"), "\n")
```
## Assert the Flag Rule
A value its provider flags 8/9 never enters a derived value. Where sensor 1's
sigma-theta is flagged and sensor 2's is good, the average must be sensor 2 alone;
where both are flagged there must be no average; where the temperature or salinity
average is flagged there must be no spice. A sigma-theta sensor counts as flagged when the
temperature or salinity it is computed from is flagged (ctd-cast writes that onto the sigma flag; this
checks the average itself, so a provider that leaves `SigThetaTSnQ` blank cannot slip a bad sensor in).
```{r}
#| label: flag-audit
fa <- summarize(flag_audit, across(-cruise_key, sum))
fa |> datatable(caption = "Flag audit over every bin computed", rownames = FALSE)
stopifnot(
"sensor 1 flagged, sensor 2 good: the average must be sensor 2" =
fa$s1_flagged_s2_good == fa$avg_equals_s2,
"both sigma-theta sensors flagged: no average may exist" = fa$both_flagged_avg_present == 0,
"a flagged temperature/salinity average must yield no spice" = fa$ts_flagged_spice_present == 0,
"a flagged temperature/salinity average must yield no N2" = fa$ts_flagged_n2_present == 0,
"sigma_theta_ave includes a sensor whose sigma, temperature or salinity is flagged 8/9" =
fa$sigma_avg_has_flagged_sensor == 0)
```
## Register Measurement Types
Sixteen published types plus one retired, written with `upsert_measurement_types()` (this
ingest owns these rows: a re-render rewrites their description, units and
`_source_datasets` from the literal below, and carries every bound and vocabulary id
forward), then `declare_measurement_fields()` for the registry-owned `derivation` /
`is_canonical`, then `declare_measurement_bounds()`. `_source_datasets` is the dataset
that **publishes** the rows, `calcofi_ctd-derived`, merged into what the row already lists
(`merge_source_datasets()`): `spiciness0` is also published per bottle by
`calcofi_bottle-derived` (Ben Best, D8, 2026-10-20), which defers to this row's
description, derivation and bound. The source series and table they are
computed from are `_source_column` / `_source_table`. **No bound is invented or taken
from the data**: each is derived from a bound the registry already declares, or from a
constant the pipeline already enforces, and says which.
**Definitions (questions Q01, Q02).** The headline MLD, `mld_sigma_theta_002`, is the
provider's (Rasmus Swalethorp, 2026-09-23; adopted 2026-10-01). It is a new key, not the
old one re-pointed: the v2026.10.01 headline `mld_sigma_theta_003` names its 0.03
threshold, and a key that names a criterion it no longer holds would mislead every
reader who has used it. That key is **retired**: its registry row stays, marked so, with
`is_canonical = FALSE`, and nothing emits it. The chlorophyll keys name a quantity, not a
criterion, so they keep their names and change their definition.
```{r}
#| label: register-types
d_mt0 <- read_measurement_type(meas_type_csv)
src_mt <- function(tp) filter(d_mt0, measurement_type == tp)
st1 <- src_mt("sigma_theta_1"); chl <- src_mt("est_chlorophyll_a_sta_corr")
t_ave <- src_mt("temperature_ave"); s_ave <- src_mt("salinity_ave_corr")
ox <- src_mt("oxygen_ml_l_ave_sta_corr"); no3 <- src_mt("est_nitrate_sta_corr")
stopifnot(nrow(st1) == 1, nrow(chl) == 1, nrow(t_ave) == 1, nrow(s_ave) == 1, nrow(ox) == 1, nrow(no3) == 1)
p06 <- function(tp) src_mt(tp)$units_nerc_p06
new_types <- tribble(
~measurement_type, ~description, ~units, ~grain, ~category, ~units_nerc_p06, ~`_source_column`, ~is_canonical, ~derivation,
"spiciness0", "Spice (spiciness at 0 dbar, TEOS-10); positive spicy (warm, salty), negative minty", "kg/m3", "obs",
"Physical Oceanography", p06("sigma_theta_1"), "temperature_ave; salinity_ave_corr; pressure", TRUE,
"calcofi4db::ctd_spice(): gsw_SA_from_SP, gsw_CT_from_t, gsw_spiciness0 (McDougall & Krzysik 2015). calcofi_ctd-derived: on the sensor-pair averaged corrected temperature and salinity of each 1 m bin, final and preliminary_with_bottle casts only. calcofi_bottle-derived: calcofi4db::bottle_spice_sigma0() on each bottle's own temperature and salinity at gsw_p_from_z(-depth, latitude); a bottle with T_qual or S_qual 8/9 has none",
"sigma_theta_ave", "Potential density anomaly (sigma-theta), sensor-pair average by the provider's flags", "kg/m3", "obs",
"Physical Oceanography", p06("sigma_theta_1"), "sigma_theta_1; sigma_theta_2", TRUE,
"calcofi4db::ctd_sigma_theta_ave() = combine_sensor_pair() on sigma_theta_1/2: an 8/9-flagged sensor dropped, 1/2 select a sensor, else the mean; final and preliminary_with_bottle casts only",
"mld_sigma_theta_002", "Mixed-layer depth: where sigma-theta is 0.02 kg/m3 greater than at 10 m (CalCOFI legacy definition)", "m", "sample",
"Physical Oceanography", p06("bottom_depth"), "sigma_theta_ave", TRUE,
"calcofi4db::ctd_mld(criterion = 'sigma_theta', threshold = 0.02, ref_depth = 10) on the 1 m bins, interpolated linearly between the bracketing bins; the provider's definition (Rasmus Swalethorp 2026-09-23, questions Q01): 'the depth at which sigma-theta is 0.02 kg/m3 greater [than at] a reference depth of 10 m'; absent where the cast never crosses or does not reach 10 m",
"mld_sigma_theta_003", "RETIRED: mixed-layer depth, sigma-theta increase of 0.03 kg/m3 from 10 m (de Boyer Montegut et al. 2004)", "m", "sample",
"Physical Oceanography", p06("bottom_depth"), "sigma_theta_ave", FALSE,
"RETIRED after v2026.10.01, no longer emitted: the interim headline MLD, superseded by mld_sigma_theta_002, the provider's definition (questions Q01). Was calcofi4db::ctd_mld(criterion = 'sigma_theta', threshold = 0.03, ref_depth = 10); still reproducible with that call",
"mld_sigma_theta_0125", "Mixed-layer depth, sigma-theta increase of 0.125 kg/m3 from 10 m (Levitus 1982)", "m", "sample",
"Physical Oceanography", p06("bottom_depth"), "sigma_theta_ave", TRUE,
"calcofi4db::ctd_mld(criterion = 'sigma_theta', threshold = 0.125, ref_depth = 10) on the 1 m bins; an alternative criterion published beside the headline mld_sigma_theta_002 (questions Q01)",
"mld_temperature_02", "Mixed-layer depth, temperature departure of 0.2 degC from 10 m (de Boyer Montegut et al. 2004)", "m", "sample",
"Physical Oceanography", p06("bottom_depth"), "temperature_ave", TRUE,
"calcofi4db::ctd_mld(criterion = 'temperature', threshold = 0.2, ref_depth = 10) on the 1 m bins; needs no salinity, so the only MLD on preliminary_without_bottle casts; an alternative to the headline mld_sigma_theta_002 (questions Q01)",
"chl_max_depth", "Depth of the chlorophyll-a maximum (DCM): the highest value of a 3 m running mean", "m", "sample",
"Productivity & Pigments", p06("bottom_depth"), "est_chlorophyll_a_sta_corr", TRUE,
"calcofi4db::ctd_chl_max(window_m = 3) on est_chlorophyll_a_sta_corr: the depth of the highest value of a 3 m running mean (each 1 m bin with its neighbours, truncated at the ends of the profile); the provider's definition (Rasmus Swalethorp 2026-09-23, questions Q02)",
"chl_max", "Chlorophyll-a at its maximum: the 3 m running mean at chl_max_depth", chl$units, "sample",
"Productivity & Pigments", chl$units_nerc_p06, "est_chlorophyll_a_sta_corr", TRUE,
"calcofi4db::ctd_chl_max(window_m = 3): the 3 m running mean of est_chlorophyll_a_sta_corr at chl_max_depth (questions Q02)",
"chl_integrated", "Chlorophyll-a integrated over the top 200 m (or the cast bottom): the sum of the 1 m bins", "mg/m2", "sample",
"Productivity & Pigments", NA_character_, "est_chlorophyll_a_sta_corr", TRUE,
"calcofi4db::ctd_integrate(z_max = 200, z_top_max = 5, method = 'sum'): the sum of the 1 m bins of est_chlorophyll_a_sta_corr (ug/L = mg/m3) from the surface to 200 m or the deepest good bin; the provider's CTD rule (Rasmus Swalethorp 2026-09-23, questions Q02); a bin missing inside the profile is interpolated, the shallowest bin is carried to the surface when it is no deeper than 5 m, else absent; chl_integrated_depth says how deep it reached",
"chl_integrated_depth", "Depth reached by chl_integrated (200 m unless the cast is shallower)", "m", "sample",
"Productivity & Pigments", p06("bottom_depth"), "est_chlorophyll_a_sta_corr", TRUE,
"calcofi4db::ctd_integrate(): min(200, deepest good bin) (questions Q02)",
"hypoxic_depth_24", "Mild hypoxic boundary depth: the shallowest depth where oxygen falls to 2.4 mL/L", "m", "sample",
"Physical Oceanography", p06("bottom_depth"), "oxygen_ml_l_ave_sta_corr", TRUE,
"calcofi4db::ctd_hypoxic_depth(threshold 2.4 mL/L) = profile_threshold_depth(direction = 'below') on the station-corrected oxygen pair average of the 1 m bins: the shallowest bin at or below 2.4 mL/L, interpolated linearly with the bin above; a profile already below it at its first bin counts only when that bin is within 20 m of the surface; absent where the cast never reaches 2.4 mL/L. The provider's definition (Rasmus Swalethorp 2026-09-24, questions Q10): the OMZ can sit mid-profile, so the boundary is the shallowest one. Final and preliminary_with_bottle casts only",
"hypoxic_depth_14", "Hypoxic boundary depth: the shallowest depth where oxygen falls to 1.4 mL/L", "m", "sample",
"Physical Oceanography", p06("bottom_depth"), "oxygen_ml_l_ave_sta_corr", TRUE,
"calcofi4db::ctd_hypoxic_depth(threshold 1.4 mL/L), the same rule as hypoxic_depth_24 at the hypoxic boundary (about 60 umol/kg; Rasmus Swalethorp 2026-09-24, questions Q10)",
"hypoxic_depth_05", "Severe hypoxic boundary depth (core of the oxygen minimum zone): the shallowest depth where oxygen falls to 0.5 mL/L", "m", "sample",
"Physical Oceanography", p06("bottom_depth"), "oxygen_ml_l_ave_sta_corr", TRUE,
"calcofi4db::ctd_hypoxic_depth(threshold 0.5 mL/L), the same rule as hypoxic_depth_24 at the severe boundary, the OMZ core (Rasmus Swalethorp 2026-09-24, questions Q10); most casts stop above it, so it is sparser than the other two",
"nitracline_depth", "Nitracline depth: where nitrate reaches 1 umol/L, interpolated between the bracketing samples", "m", "sample",
"Nutrients & Chemistry", p06("bottom_depth"), "est_nitrate_sta_corr", TRUE,
"calcofi4db::profile_threshold_depth(threshold = 1, direction = 'above'): the shallowest sample at or above 1 umol/L, the depth interpolated linearly from the sample above it; a profile already at 1 umol/L in its first sample counts only when that sample is within 20 m of the surface; absent where nitrate never reaches 1 umol/L. The provider's rule (Rasmus Swalethorp 2026-09-24 and his D_NClineDepth.m, questions Q10). calcofi_ctd-derived: on the 1 m bins of the bottle-fitted sensor estimate est_nitrate_sta_corr, final and preliminary_with_bottle casts. calcofi_bottle-derived: on the bottle database's nitrate at the bottle depths of each cast",
"pycnocline_depth", "Pycnocline depth: where the buoyancy frequency squared N2 (TEOS-10, 10 m running mean) is greatest between 10 and 200 m", "m", "sample",
"Physical Oceanography", p06("bottom_depth"), "temperature_ave; salinity_ave_corr; pressure", TRUE,
"calcofi4db::ctd_pycnocline(p_min = 10, p_max = 200) on buoyancy_n2: the depth of the largest smoothed N2 in the window (ties to the shallowest), for a cast that starts within 15 m of the surface and reaches 50 m with at least 5 bins in the window (the conditions of the CTD team's F_PycnoclineDepth.m, after Fiedler et al. 2013); the 10 m running mean replaces that script's 10 m centred difference and the draft R script's smoothing spline (questions Q11)",
"buoyancy_n2_max", "Maximum buoyancy frequency squared N2 (TEOS-10, 10 m running mean) between 10 and 200 m, at pycnocline_depth", "1/s2", "sample",
"Physical Oceanography", NA_character_, "temperature_ave; salinity_ave_corr; pressure", TRUE,
"calcofi4db::ctd_pycnocline(): the value of buoyancy_n2 at pycnocline_depth (questions Q11)",
"buoyancy_n2", "Buoyancy (Brunt-Vaisala) frequency squared N2 (TEOS-10), 10 m running mean", "1/s2", "obs",
"Physical Oceanography", NA_character_, "temperature_ave; salinity_ave_corr; pressure", TRUE,
"calcofi4db::ctd_n2(smooth_m = 10): gsw_SA_from_SP, gsw_CT_from_t, gsw_Nsquared at the mid-points of the 1 m bins, aligned to the bins by linear interpolation, then a centred 10 m running mean (the CTD team's draft R script, with the running mean in place of its smoothing spline; questions Q11); on the sensor-pair averaged corrected temperature and salinity, final and preliminary_with_bottle casts only; emitted at the depths calcofi_ctd-cast publishes") |>
mutate(`_source_table` = "obs_ctd_full",
# this dataset, plus any other that publishes the same type (spiciness0 is also
# calcofi_bottle-derived's, D8 2026-10-20): a re-render must not narrow the row
`_source_datasets` = merge_source_datasets(
d_mt0$`_source_datasets`[match(measurement_type, d_mt0$measurement_type)], ds_key),
`_qual_column` = NA_character_, `_prec_column` = NA_character_)
d_meas_type <- read_measurement_type(meas_type_csv) |>
upsert_measurement_types(select(new_types, -is_canonical, -derivation))
# na = "" is load-bearing: the default writes the literal string "NA" into every empty cell
write_csv(d_meas_type, meas_type_csv, na = "")
# derivation and is_canonical are registry-owned: this ingest owns these rows, so it
# declares them deliberately (overwrite = TRUE), never as a side effect of the upsert
d_meas_type <- declare_measurement_fields(
mutate(select(new_types, measurement_type, derivation, is_canonical),
is_canonical = as.character(is_canonical)),
meas_type_csv, overwrite = TRUE, quiet = TRUE)
stopifnot(
"a ctd-derived type does not list this dataset" = all(vapply(
filter(d_meas_type, measurement_type %in% new_types$measurement_type)$`_source_datasets`,
function(x) ds_key %in% strsplit(x, ";", fixed = TRUE)[[1]], logical(1))))
# spiciness0 over the registered temperature x salinity bounds at 0 dbar, rounded
# outward: what the registry already calls physically possible (questions Q07)
tsg <- expand.grid(t = seq(t_ave$valid_min, t_ave$valid_max, 1),
s = seq(s_ave$valid_min, s_ave$valid_max, 1))
sa_g <- gsw::gsw_SA_from_SP(tsg$s, rep(0, nrow(tsg)), -120, 33)
sp_g <- gsw::gsw_spiciness0(sa_g, gsw::gsw_CT_from_t(sa_g, tsg$t, rep(0, nrow(tsg))))
# N2 = (g / rho0) d(sigma-theta)/dz: the whole registered sigma_theta_1 range across one 1 m
# bin is the steepest step the registry calls possible; rounded outward to 2 decimals
n2_lim <- ceiling(9.81 / 1025 * (st1$valid_max - st1$valid_min) * 100) / 100
bounds <- tribble(
~measurement_type, ~valid_min, ~valid_max, ~why,
"spiciness0", floor(min(sp_g)), ceiling(max(sp_g)), "gsw_spiciness0 over the registered temperature_ave x salinity_ave_corr bounds (Q07)",
"sigma_theta_ave", st1$valid_min, st1$valid_max, "the bounds sigma_theta_1/2 declare",
"mld_sigma_theta_002", 0, CC_DEPTH_MAX_M, "a depth: 0 to the pipeline's CC_DEPTH_MAX_M",
"mld_sigma_theta_003", 0, CC_DEPTH_MAX_M, "a depth: 0 to CC_DEPTH_MAX_M (retired; kept so the row stays bounded)",
"mld_sigma_theta_0125", 0, CC_DEPTH_MAX_M, "a depth: 0 to CC_DEPTH_MAX_M",
"mld_temperature_02", 0, CC_DEPTH_MAX_M, "a depth: 0 to CC_DEPTH_MAX_M",
"chl_max_depth", chl$valid_depth_min_m, chl$valid_depth_max_m, "est_chlorophyll_a_sta_corr is defined over this depth window only",
"chl_max", chl$valid_min, chl$valid_max, "the bounds est_chlorophyll_a_sta_corr declares (a mean of in-bound values stays in them)",
"chl_integrated", 0, chl$valid_max * p$chl_z_max, "the chl ceiling times the 200 one-metre bins summed",
"chl_integrated_depth", 0, p$chl_z_max, "the integration floor",
"hypoxic_depth_24", 0, CC_DEPTH_MAX_M, "a depth: 0 to CC_DEPTH_MAX_M",
"hypoxic_depth_14", 0, CC_DEPTH_MAX_M, "a depth: 0 to CC_DEPTH_MAX_M",
"hypoxic_depth_05", 0, CC_DEPTH_MAX_M, "a depth: 0 to CC_DEPTH_MAX_M",
"nitracline_depth", 0, CC_DEPTH_MAX_M, "a depth: 0 to CC_DEPTH_MAX_M",
"pycnocline_depth", p$pyc_p_min, p$pyc_p_max, "the search window (10-200 m)",
"buoyancy_n2_max", -n2_lim, n2_lim, "g/rho0 times the registered sigma_theta_1 range over one 1 m bin, rounded outward (the largest step the registry calls possible)",
"buoyancy_n2", -n2_lim, n2_lim, "the same: N2 = (g/rho0) d(sigma-theta)/dz over a 1 m bin at the registered range")
d_meas_type <- declare_measurement_bounds(select(bounds, -why), meas_type_csv)
bounds |> datatable(caption = "Declared bounds and where each comes from", rownames = FALSE)
dbWriteTable(con, "measurement_type", as.data.frame(d_meas_type), overwrite = TRUE)
```
## Load Dataset Metadata
```{r}
#| label: load-dataset-metadata
this_provider <- provider; this_dataset <- dataset
d_dataset <- ingest_yaml_to_dataset_df(read_ingest_yaml(here())) |>
filter(provider == this_provider, dataset == this_dataset)
stopifnot(nrow(d_dataset) == 1)
dbWriteTable(con, "dataset", as.data.frame(d_dataset), overwrite = TRUE)
```
## Emit Core Tables
**Per bin → `obs`, at the depths `calcofi_ctd-cast` publishes in `obs`** (its thinned
series: a 10 m grid, the depths where each profile bends, and bottle depths), so a
derived value lines up with the temperature and salinity it came from and the
release `climatology` (10 m bins) covers it with no special case. Position, time,
grid and cruise come from that same ctd-cast row. The full 1 m derived series is
not published (it would repeat `obs_ctd_full`'s grain for two computed columns); it
is recomputable from `obs_ctd_full` with the same functions.
**Per cast → `sample_measurement`** on the ctd-cast cast `sample_key`.
**Per station pair → `ctd_geostrophic`**, its own table: its grain is between
stations, so it has no `sample`, no `obs` row and no anomaly. It is staged with
this dataset's parquet but `release_database.qmd` does not publish it while Q03
and Q04 are open (CalCOFI/workflows#103), and `tables_owned` does not list it.
This dataset emits **no `sample`**: the cast is `calcofi_ctd-cast`'s, and a second
row with the same key would break the global uniqueness `assemble_core()` asserts.
The cross-dataset keys are declared in `metadata/relationships_cross.csv`.
```{r}
#| label: emit-core
# ctd-cast's thinned series repeats ~10,200 (cast, depth) pairs as two scans at
# different times; one derived value per (cast, depth), on the earlier scan's row
dbExecute(con, "
CREATE OR REPLACE TEMP TABLE thin_depth AS
SELECT sample_key, grid_key, cruise_key, latitude, longitude, datetime, depth_min_m, depth_max_m
FROM src_obs WHERE measurement_type = 'temperature_ave'
QUALIFY ROW_NUMBER() OVER (PARTITION BY sample_key, depth_min_m ORDER BY datetime, latitude) = 1")
for (tp in c("sigma_theta_ave", "spiciness0", "buoyancy_n2"))
append_obs(con, glue("
SELECT 'env', '{ds_key}', o.sample_key, o.grid_key, o.cruise_key,
o.latitude, o.longitude, o.datetime, o.depth_min_m, o.depth_max_m,
NULL::VARCHAR, NULL::VARCHAR, '{tp}', b.{tp}, NULL::VARCHAR, NULL::DOUBLE
FROM thin_depth o
JOIN bin_full b ON b.sample_key = o.sample_key AND b.depth_m = o.depth_min_m
WHERE b.{tp} IS NOT NULL"))
append_sample_measurement(con, glue("
SELECT sample_key, '{ds_key}', measurement_type, value, NULL::VARCHAR
FROM cast_products"))
dbExecute(con, "
CREATE OR REPLACE TABLE ctd_geostrophic AS
SELECT cruise_key, line, station_1 AS site_key_1, station_2 AS site_key_2,
sample_key_1, sample_key_2, dist_mid_km, dx_km,
pressure_min_dbar, pressure_max_dbar, velocity_m_s, shallow, data_stage
FROM geo_raw
ORDER BY cruise_key, line, dist_mid_km, pressure_min_dbar")
n <- list(
obs = dbGetQuery(con, "SELECT COUNT(*) AS n FROM obs")$n,
sample_measurement = dbGetQuery(con, "SELECT COUNT(*) AS n FROM sample_measurement")$n,
ctd_geostrophic = dbGetQuery(con, "SELECT COUNT(*) AS n FROM ctd_geostrophic")$n)
cat(glue("core projection: obs {n$obs}, sample_measurement {n$sample_measurement}, ",
"ctd_geostrophic {n$ctd_geostrophic}"), "\n")
# how many of ctd-cast's published depths found a full-resolution bin to carry
dbGetQuery(con, "
SELECT c.data_stage, COUNT(*) AS thinned_depths,
COUNT(b.sample_key) AS with_derived_bin,
ROUND(100.0 * COUNT(b.sample_key) / COUNT(*), 2) AS pct
FROM src_obs o JOIN casts c USING (sample_key)
LEFT JOIN bin_full b ON b.sample_key = o.sample_key AND b.depth_m = o.depth_min_m
WHERE o.measurement_type = 'temperature_ave'
GROUP BY 1 ORDER BY 1") |>
datatable(caption = "ctd-cast's published (thinned) depths that carry a derived bin, by tier", rownames = FALSE)
```
## Coverage by Tier
```{r}
#| label: coverage
d_cov <- dbGetQuery(con, "
WITH per AS (
SELECT sample_key, measurement_type FROM sample_measurement
UNION ALL SELECT DISTINCT sample_key, measurement_type FROM obs)
SELECT c.data_stage, p.measurement_type, COUNT(DISTINCT p.sample_key) AS casts
FROM per p JOIN casts c USING (sample_key) GROUP BY ALL") |>
pivot_wider(names_from = data_stage, values_from = casts, values_fill = 0) |>
cross_join(count(d_casts, data_stage) |> pivot_wider(names_from = data_stage, values_from = n,
names_prefix = "of_")) |>
arrange(measurement_type)
d_cov |> datatable(caption = "Casts carrying each product, by data_stage (of_* = casts in the tier)", rownames = FALSE)
# the tier rule, asserted: a preliminary_without_bottle cast carries ONLY the
# temperature-criterion MLD
n_bad_tier <- dbGetQuery(con, "
SELECT COUNT(*) AS n FROM (
SELECT sample_key, measurement_type FROM sample_measurement
UNION ALL SELECT sample_key, measurement_type FROM obs) p
JOIN casts c USING (sample_key)
WHERE c.data_stage = 'preliminary_without_bottle' AND p.measurement_type <> 'mld_temperature_02'")$n
n_bad_geo <- dbGetQuery(con, "
SELECT COUNT(*) AS n FROM ctd_geostrophic g
JOIN casts c ON c.sample_key IN (g.sample_key_1, g.sample_key_2)
WHERE c.data_stage = 'preliminary_without_bottle'")$n
stopifnot(
"a preliminary_without_bottle cast may carry only mld_temperature_02" = n_bad_tier == 0,
"no geostrophic pair may use a preliminary_without_bottle cast" = n_bad_geo == 0)
```
## Check Measurement Bounds
```{r}
#| label: bounds
b_obs <- check_measurement_bounds(con, "obs", mt = d_meas_type, dataset_key = ds_key)
b_sm <- check_measurement_bounds(con, "sample_measurement", mt = d_meas_type, dataset_key = ds_key)
bounds_datatable(bind_rows(b_obs, b_sm))
stopifnot(
"every derived type is bounded" = all(c(b_obs$status, b_sm$status) != "undeclared"),
"no derived value breaks its bound" = all(c(b_obs$status, b_sm$status) != "out_of_range"))
d_geo_rng <- dbGetQuery(con, "
SELECT shallow, COUNT(*) AS bins, COUNT(DISTINCT (cruise_key, sample_key_1, sample_key_2)) AS pairs,
MIN(velocity_m_s) AS v_min, MAX(velocity_m_s) AS v_max,
SUM(CASE WHEN NOT isfinite(velocity_m_s) THEN 1 ELSE 0 END) AS n_nonfinite,
MIN(dx_km) AS dx_min_km
FROM ctd_geostrophic GROUP BY shallow ORDER BY shallow")
d_geo_rng |> datatable(caption = "ctd_geostrophic: velocity range by shallow flag (m/s)", rownames = FALSE)
stopifnot(
"geostrophic velocity must be finite" = sum(d_geo_rng$n_nonfinite) == 0,
"no pair closer than min_dx_km" = min(d_geo_rng$dx_min_km) >= p$geo_min_dx)
```
## Findings for the Provider
Values inside the generous bounds that no ocean water can have are **not deleted**:
a bound catches the impossible, and these are unflagged in the source, so they are
the CTD team's to flag in the ledger (`flag_accepted.parquet`), after which the next
render drops them. Spice below −3 kg m⁻³ means a practical salinity near 20, which is
a salinity fault the flags missed (the same class as the corrected sensor reading
19 PSU the measurement-bounds skill records); a geostrophic velocity above
0.5 m s⁻¹ between two casts that both reach 500 dbar is almost always one bad
profile. Both are question Q08.
```{r}
#| label: findings
d_spice_odd <- dbGetQuery(con, "
SELECT o.cruise_key, c.site_key, o.sample_key, COUNT(*) AS n_bins,
ROUND(MIN(o.measurement_value), 2) AS spice_min,
MIN(o.depth_min_m) AS depth_min_m, MAX(o.depth_min_m) AS depth_max_m
FROM obs o JOIN casts c USING (sample_key)
WHERE o.measurement_type = 'spiciness0' AND o.measurement_value < -3
GROUP BY ALL ORDER BY n_bins DESC")
d_spice_odd |> datatable(caption = glue(
"Spice below -3 kg/m3: {sum(d_spice_odd$n_bins)} bins on {nrow(d_spice_odd)} casts (question Q08)"),
rownames = FALSE)
d_geo_odd <- dbGetQuery(con, "
SELECT cruise_key, line, site_key_1, site_key_2, ROUND(MAX(ABS(velocity_m_s)), 2) AS v_abs_max
FROM ctd_geostrophic WHERE NOT shallow AND ABS(velocity_m_s) > 0.5
GROUP BY ALL ORDER BY v_abs_max DESC")
d_geo_odd |> datatable(caption = glue(
"Geostrophic |v| above 0.5 m/s on pairs reaching 500 dbar: {nrow(d_geo_odd)} pairs (question Q08)"),
rownames = FALSE)
```
## Relationships
```{r}
#| label: relationships
dbExecute(con, "DROP VIEW IF EXISTS src_obs"); dbExecute(con, "DROP VIEW IF EXISTS src_sample")
cast_keys <- dbGetQuery(con, "SELECT sample_key FROM casts")$sample_key
stopifnot(
"every obs.sample_key is a calcofi_ctd-cast cast" =
dbGetQuery(con, "SELECT COUNT(*) AS n FROM obs WHERE sample_key NOT IN (SELECT sample_key FROM casts)")$n == 0,
"every sample_measurement.sample_key is a calcofi_ctd-cast cast" =
dbGetQuery(con, "SELECT COUNT(*) AS n FROM sample_measurement WHERE sample_key NOT IN (SELECT sample_key FROM casts)")$n == 0,
"every geostrophic cast is a calcofi_ctd-cast cast" =
dbGetQuery(con, "SELECT COUNT(*) AS n FROM ctd_geostrophic
WHERE sample_key_1 NOT IN (SELECT sample_key FROM casts)
OR sample_key_2 NOT IN (SELECT sample_key FROM casts)")$n == 0,
"every measurement_type is registered" =
dbGetQuery(con, "SELECT COUNT(*) AS n FROM (SELECT measurement_type FROM obs UNION
SELECT measurement_type FROM sample_measurement)
WHERE measurement_type NOT IN (SELECT measurement_type FROM measurement_type)")$n == 0,
"ctd_geostrophic key is unique" =
dbGetQuery(con, "SELECT COUNT(*) AS n FROM (SELECT cruise_key, sample_key_1, sample_key_2, pressure_min_dbar
FROM ctd_geostrophic GROUP BY ALL HAVING COUNT(*) > 1)")$n == 0,
"one obs row per cast, depth and type" =
dbGetQuery(con, "SELECT COUNT(*) AS n FROM (SELECT sample_key, depth_min_m, measurement_type FROM obs
GROUP BY ALL HAVING COUNT(*) > 1)")$n == 0,
"one sample_measurement row per cast and type" =
dbGetQuery(con, "SELECT COUNT(*) AS n FROM (SELECT sample_key, measurement_type FROM sample_measurement
GROUP BY ALL HAVING COUNT(*) > 1)")$n == 0)
tbls_out <- core_output_tables(con, extra = c("ctd_geostrophic", "measurement_type", "dataset"))
rels <- core_relationships(tbls_out)
rels$primary_keys$ctd_geostrophic <- c("cruise_key", "sample_key_1", "sample_key_2", "pressure_min_dbar")
cc_erd(con, tables = c("obs", "sample_measurement", "ctd_geostrophic", "measurement_type"),
rels = rels,
colors = list(lightblue = c("obs", "sample_measurement", "ctd_geostrophic"),
lightyellow = "measurement_type"))
```
| source (calcofi_ctd-cast `obs_ctd_full`) | core | transform |
|---|---|---|
| `temperature_ave`, `salinity_ave_corr`, `pressure` (1 m) | `obs.measurement_type = spiciness0` | `ctd_spice()`; emitted at ctd-cast's thinned depths |
| `sigma_theta_1`, `sigma_theta_2` + flags (1 m) | `obs.measurement_type = sigma_theta_ave` | `ctd_sigma_theta_ave()`; thinned depths |
| `sigma_theta_ave` (1 m) | `sample_measurement`: `mld_sigma_theta_002` (headline), `mld_sigma_theta_0125` | `ctd_mld()` (0.02 is the default) |
| `temperature_ave` (1 m) | `sample_measurement`: `mld_temperature_02` | `ctd_mld(criterion = "temperature")` |
| `est_chlorophyll_a_sta_corr` (1 m) | `sample_measurement`: `chl_max_depth`, `chl_max`, `chl_integrated`, `chl_integrated_depth` | `ctd_chl_max()` (3 m running mean), `ctd_integrate()` (sum of the 1 m bins) |
| `oxygen_ml_l_ave_sta_corr` (1 m) | `sample_measurement`: `hypoxic_depth_24`, `hypoxic_depth_14`, `hypoxic_depth_05` | `ctd_hypoxic_depth()`: the shallowest crossing of 2.4 / 1.4 / 0.5 mL/L, interpolated |
| `est_nitrate_sta_corr` (1 m) | `sample_measurement`: `nitracline_depth` | `profile_threshold_depth(threshold = 1, direction = "above")` |
| `temperature_ave`, `salinity_ave_corr`, `pressure` (1 m) | `obs.measurement_type = buoyancy_n2` (thinned depths); `sample_measurement`: `pycnocline_depth`, `buoyancy_n2_max` | `ctd_n2()` (TEOS-10 N², 10 m running mean), `ctd_pycnocline()` (its maximum in 10–200 m) |
| `temperature_ave`, `salinity_ave_corr`, `pressure` per station | `ctd_geostrophic` (staged, not released) | `ctd_geostrophic()`, 10 dbar bin means |
| **not published** | the full 1 m derived per-bin series; the up cast where a down cast exists; per-cast statuses (`mixed_to_bottom`, `no_reference`, `not_reached`, `no_bracket`, `too_shallow`) — an absent row; `ctd_geostrophic`; the retired `mld_sigma_theta_003` | |
: Source → core mapping {#tbl-mapping}
## Data Preview
```{r}
#| label: preview-obs
dbGetQuery(con, "SELECT * FROM obs ORDER BY sample_key, depth_min_m, measurement_type LIMIT 200") |>
datatable(caption = "obs — first 200 rows", rownames = FALSE, filter = "top")
```
```{r}
#| label: preview-sample-measurement
dbGetQuery(con, "
SELECT c.cruise_key, c.site_key, c.data_stage, m.*
FROM sample_measurement m JOIN casts c USING (sample_key)
ORDER BY c.cruise_key DESC, c.site_key, m.measurement_type LIMIT 300") |>
datatable(caption = "sample_measurement — the most recent casts", rownames = FALSE, filter = "top")
```
```{r}
#| label: preview-summary
dbGetQuery(con, "
SELECT measurement_type, COUNT(*) AS casts,
ROUND(MEDIAN(measurement_value), 2) AS median,
ROUND(MIN(measurement_value), 2) AS min, ROUND(MAX(measurement_value), 2) AS max
FROM sample_measurement GROUP BY 1 ORDER BY 1") |>
datatable(caption = "Per-cast products over every cruise", rownames = FALSE)
```
```{r}
#| label: preview-geostrophic
dbGetQuery(con, "SELECT * FROM ctd_geostrophic ORDER BY cruise_key DESC, line, dist_mid_km, pressure_min_dbar LIMIT 300") |>
datatable(caption = "ctd_geostrophic — the most recent cruise", rownames = FALSE, filter = "top")
```
## Validate
`validate_for_release()` treats every `_key` column as required. The NULLs below are
declared with their reason and count; anything undeclared, or a count that moved,
fails the render.
```{r}
#| label: validate
# the expected NULL counts, derived independently of the table being checked
n_obs_rows <- dbGetQuery(con, "SELECT COUNT(*) AS n FROM obs")$n
# the wrangling tables are not outputs; drop them so the validator sees what ships
for (tb in c("bin_full", "cast_products", "geo_raw", "casts"))
dbExecute(con, glue("DROP TABLE IF EXISTS {tb}"))
results <- validate_for_release(con, checks = "all", strict = FALSE)
nullable <- tribble(
~table, ~column, ~n, ~reason,
"obs", "taxon_key", n_obs_rows, "env realm: a derived physical quantity names no organism")
found <- tibble(msg = results$errors) |>
mutate(table = sub("^Table '([^']+)'.*$", "\\1", msg),
column = sub("^.*required column '([^']+)'.*$", "\\1", msg),
n = suppressWarnings(as.integer(sub("^Table '[^']+' has (\\d+) NULL.*$", "\\1", msg))))
unexplained <- anti_join(found, nullable, by = c("table", "column"))
moved <- inner_join(found, nullable, by = c("table", "column"), suffix = c("", "_decl")) |>
filter(!is.na(n_decl), n != n_decl)
nullable |> left_join(select(found, table, column, n_found = n), by = c("table", "column")) |>
datatable(caption = "Declared NULLs vs what validate_for_release() found", rownames = FALSE)
if (nrow(unexplained)) print(unexplained$msg)
stopifnot(
"a NULL appeared with no declared reason" = nrow(unexplained) == 0,
"a declared NULL count has changed" = nrow(moved) == 0)
```
## Enforce Column Types
```{r}
#| label: enforce-types
d_tbls_rd <- read_csv(glue("{dir_meta}/tbls_redefine.csv"))
d_flds_rd <- read_csv(glue("{dir_meta}/flds_redefine.csv"))
enforce_column_types(con, d_flds_rd = d_flds_rd, tables = "ctd_geostrophic")
```
## Write Parquet Outputs
```{r}
#| label: write-parquet
dir_create(dir_parquet)
tbls_out <- core_output_tables(con, extra = c("ctd_geostrophic", "measurement_type", "dataset"))
parquet_stats <- write_parquet_outputs(
con = con, output_dir = dir_parquet, tables = tbls_out,
sort_by = list(obs = c("grid_key", "measurement_type", "depth_min_m"),
ctd_geostrophic = c("cruise_key", "line", "dist_mid_km", "pressure_min_dbar")),
strip_provenance = FALSE)
build_relationships_json(rels = rels, output_dir = dir_parquet, provider = provider, dataset = dataset)
parquet_stats |> mutate(file = basename(path)) |> select(-path) |>
datatable(caption = "Parquet export statistics")
```
## Write Metadata
```{r}
#| label: write-metadata
metadata_path <- build_metadata_json(
con = con, d_tbls_rd = d_tbls_rd, d_flds_rd = d_flds_rd,
metadata_derived_csv = c(here("metadata/core_dictionary.csv"),
glue("{dir_meta}/metadata_derived.csv")),
output_dir = dir_parquet, tables = tbls_out,
set_comments = TRUE, provider = provider, dataset = dataset,
workflow_url = cc$workflow_url, tables_owned = tables_owned)
```
## Upload to GCS
```{r}
#| label: upload-gcs
if (Sys.getenv("CALCOFI_SKIP_GCS") == "") {
sync_to_gcs(local_dir = dir_stage, sidecar_dir = dir_parquet,
gcs_prefix = glue("ingest/{dir_label}"), bucket = "calcofi-db")
} else cat("CALCOFI_SKIP_GCS set — skipping the upload (local verification run)\n")
```
## Questions for Data Providers
Rasmus Swalethorp's answers to Q01 (mixed-layer depth), Q02 (chlorophyll maximum
and integral) and Q05 (down cast) are applied above, and his 2026-09-24
definitions of the nitracline, the hypoxic boundary depths and the pycnocline are
applied as proposed in Q10 and Q11 (the one choice that is ours, the 10 m running
mean on N², is Q11). Still open: the geostrophic reference and spacing (Q03, Q04;
the table is not released until they are settled), the inherited licence/PI gap
(Q06), the derived spice bound (Q07) and the implausible values for the CTD team to
flag (Q08).
```{r}
#| label: provider-questions
questions_datatable(
here(cc$questions_file),
caption = "Questions for the CTD derived products (ranked)")
```
## Cleanup
```{r}
#| label: cleanup
close_duckdb(con)
cat(glue("input used: {input_used}"), "\n")
cat(glue("Parquet outputs written to: {dir_stage}; sidecars in {dir_parquet}"), "\n")
```
